WEVER & DUCRE

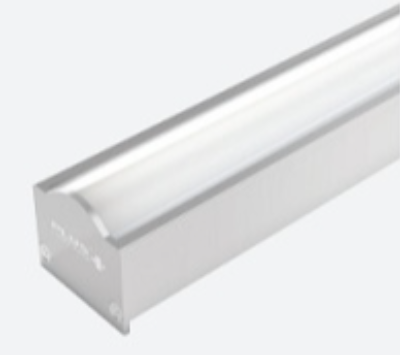

Surface mounted modular system in die cast aluminium. Available in different length configurations based on a 83mm link (2 LED per link) with a 76mm increment. Section 34x36.6mm. Its flexible structure maintain a constant 38mm pitch between the LED.

timeless design · square design · Precision reflector for accentuation · Microfaceted, aluminum-coated reflector · highly reflective faceted reflector · aluminum coated for best reflection · passive cooling through optimized heat sink · powder-coated die cast body · Concrete installation housing available as accessory. · Snap springs for concrete and hollow walls · Installation depth only 100 mm · Ceiling thicknesses from 1-25 mm · RAL colors on request · 28 colors possible

Recessed or Surface mount magnetic track system containing linear light, spot light, wall washer and pendant light module to create your imagination of illumination purposes in a wonderful visual experience. Low voltage DC48V plus double insurance installation system magnetic + click make it work safely. Zoomable beam angle from 15° - 35° degree.

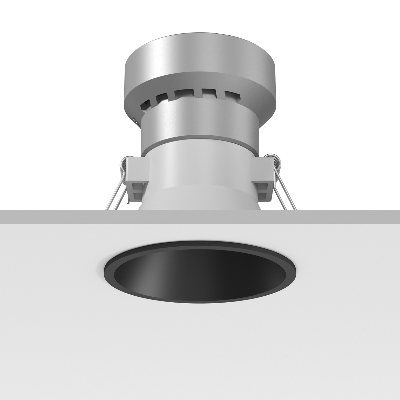

Round recessed downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; System Power 13W; measurements Ø78mm x 97mm; ceiling cutout of Ø68mm with a narrow mounting trim; ceiling thickness 5-20mm; luminaire’s weight is approximately 210g; rotation 350° and pivot Max. 30°; CCT 3000K with a System luminous flux of 800lm; high color rendering at an index of CRI90.
