ELR

RECESSED DOWNLIGHT
INDOOR LIGHTING

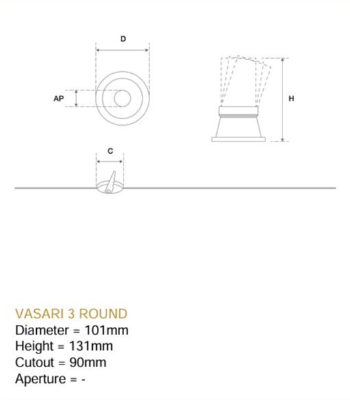

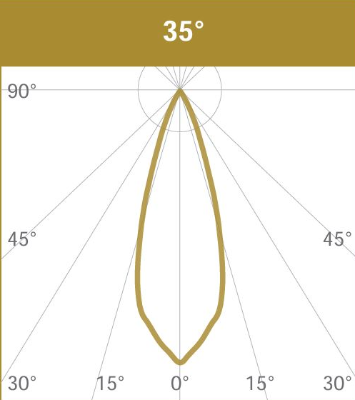

VASARI 3 ROUND_ELR50N.7.35.27.PA.ND

A series of premium recessed downlights available in various sizes, shapes, and finishing. Paired with ELR’s highly configurable LED modules, the Vasari downlight series offers a high degree of flexibility, aesthetics and functionally for the most discerning of applications

Specification

Power
7.5W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
1107LM
Finishing
WHITE TRIM - WHITE REFLECTOR
IP Rating
IP40
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

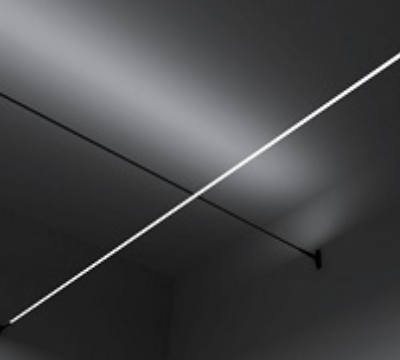

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source with a flood light distribution is composed of 6 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 1.5 kg. The power supply cable is included and features a 0.2 m length. The device features protection class I and can be wall lights or floormounted with an outer casing, code 98671 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

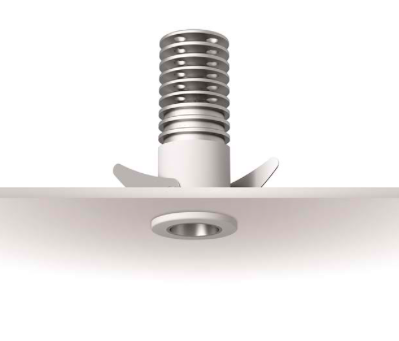

XAL
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Round recessed spotlight in die-cast aluminium; 1 lamp; surface traffic white; 360° rotatable and 30° tiltable; installation without tools in mounting set due to patented ball catch system; round installation housing; with trim jet black; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 2700 K; ≤ 2 SDCM (initial MacAdam); CRI ≥ 90;

RCL
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

DR7 3000K LED (35W for light source) standard trim recessed luminaire with 50° optic. Manufactured from LM24 aluminium and glass-filled polycarbonate, with a mild-steel mounting ring. Finished in white (RAL 9010). Voltage is 220-240V 50/60HZ. Luminaire has high-performance colour rendering of 90+ CRI. Luminaire can be rotated, with +/- 175° movement through the pan axis and •+/-35° through the tilt axis, at a resolution of less than 1° in either axis.

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.047 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 46 x 46 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
