UFO LIGHTING

Die-cast EN AB-44100 aluminium housing (copper free) with high corrosion resistance. Marine grade stainless steel AISI 316L 3 mm thick for RING or aluminium front trim for FLAT. Toughened glass diffuser 12mm thick for MICRORING, 15mm thick for MINIRING, 19mm thick for RING/MEGARING, 10mm thick for MICROFLAT, 12mm thick for MINIFLAT, 15mm thick for FLAT/MEGAFLAT. Stainless steel screws. Luminaire hard wired with single neoprene cable with cable gland. Fast connector IP68 included. Recessing box in polypropylene. Silicone gaskets.

Recessed ground / ceiling / wall luminaire made of aluminium housing with die-cast aluminium end caps complete with silicone seals. Installation in continuous lines of up to a max length of 10.5m for ground-recessed version. IP 66,IK10.

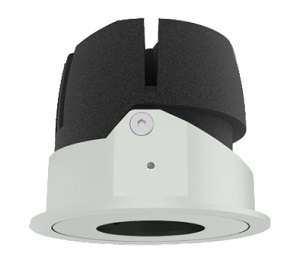

The Nano Eclipse Trimless is a recessed downlight with a trimless plaster in frame and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture, 360° rotation. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.

"Copper Free" Aluminium die cast housing in EN AB-44100 with high resistance against corrosion. Stone wash surface treatment prior to painting process. Aluminium protective guard of 8 mm thickness. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets. Painting Process: 3 Step Process 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 10 Maximum load capacity 2000 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: E. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.
