Product Detail | Bloxlimited

XAL

WALLWASHER

INDOOR LIGHTING

SASSO 60 round wallwasher trim

Round recessed spotlight in die-cast aluminium; 1 lamp; surface traffic white; 360° rotatable; installation without tools in mounting set due to patented ball catch system; round installation housing; with trim traffic white;

suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; no multiple shadows; light colour 3500 K; ≤ 2 SDCM (initial MacAdam); CRI ≥ 90; min.

Specification

Power

10.4W

Color Temperature

3500K

Light Source Type

LED

Lumen Output

983LM

Finishing

WHITE

IP Rating

IP20

Color Rendering

CRI>90

Driver

DALI DRIVER

SPARK

TRACKLIGHT

INDOOR LIGHTING

Surface mount track spotlight made of die cast aluminium housing and come with different diameter such as Ø55, Ø65, Ø70 and Ø75mm. Wattage from low 6W to 35W max. Fixture finishing available in Black or White color. Wide bean angles are avaiable. IP20

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a chalk white finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.13 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0,17 m length. The device features protection class III and can be ceiling-mounted with an outer casing, code 98502 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

WE-EF

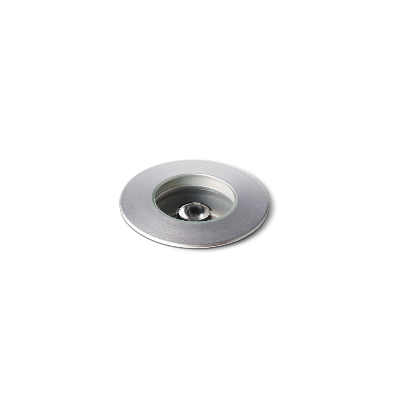

INGROUND UPLIGHT

OUTDOOR LIGHTING

IP69. IK10+. Stainless steel construction including PCS hardware. Safety glass lens, max. load 5 tonnes. Luminaire can be driven over at low speed. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 0.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC One LED Concept. 20° tiltable and 355° rotatable. 1-10 V analogue dimming or DALI interface available on request. Luminaire installation blockout and sealable junction box included in supply.

TRAXON

WALLWASHER

OUTDOOR LIGHTING

ARCHISHAPE® 2.0 Linear Power is a compact, highly reliable, and energy efficient exterior LED liner with built-in driver, unique water-proof structure and excellent lighting effect. The ARCHISHAPE® 2.0 Linear product series offers a variety of white CCT options, beam angles and power ranges with static on/off or dynamic control options via standard DMX-512. It is ideal for wall washing application to create dynamic lighting experiences while maintaining superior color consistency..
