FORMALIGHTING

Recessed linear downlight, luminaire body made of aluminium housing with white powder coated trim finish. Reflector available Silver, Black Chrome and White finish. Black finish and honeycomb accessory available upon request.

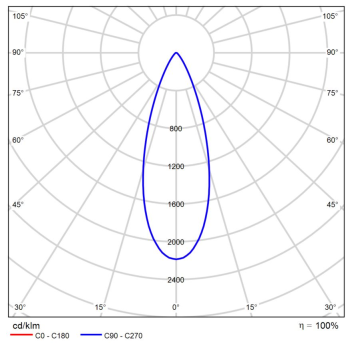

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, mounting bracket: 1 elongated hole Ø 7 mm, spacing 18 mm, 1 centre hole Ø 8.5 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 25°, luminous flux: 549 lm, wattage: 7 W, delivered lumens 78 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,008 m², dimensions (L×H×W): 85 × 86 × 85 mm, weight 0.9 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

ADONIS ARCHITECTURAL an excellent choice for grazing applications and direct illumination on façades and ceilings. A multitude of options include several power levels and color temperatures plus a variety of light engines ranging from static white to RGBW, as well as 10°, 30° or 60° and opal optics to choose from. Polyurethane is utilized in ADONIS ARCHITECTURAL to make it more resistant to impact from salt water UV-light and solvents.
