Funivia is a functional network of relationships, material and immaterial, free and inclusive capable of evolving through the cooperation of its elements. It starts from the essential, with a "mountaineer's" spirit it discovers a new level of freedom of light in spaces. A rope, the cable that carries energy, and nails, the fastening elements in space, are the basis for going far, overcoming the limits given by the rigidity of systems. The cable, with a special minimal cross-section but capable of supporting both mechanical and thermal stresses, is the energy distribution channel of the system and the load-bearing element on which the light elements are connected, it runs seamlessly in space transcending the limits of three dimensions. It is attached to the side, floor or ceiling through mechanical elements. It runs inside them without requiring to be cut and thus interrupted, drawing in space a network of regular lines, horizontal or vertical, but also freely inclined. From a single power point it can run indefinitely, the only limit being the power installed on its length. Funivia is not bound to a power grid or a predefined design, it can enter any space at any time and draw light with the utmost freedom, it can generate an extraordinary performance quality even without an ad hoc installation a specific intervention in the space. The light elements hook on the cable thanks to a "bridge" element, a kind of current-stealing lock that mechanically fixes the luminaire and takes energy from the cable. Also in this digital network each luminaire has its own identity, its own IP address, through which it can be managed with Dali systems or with Artemide App It is a sustainable approach at the level of production, distribution, installation, consumption, use, integration of elements that already exist without necessarily calling for the creation of new additional products. Funivia breaks a pattern common to existing lighting systems, breaking out of the rigidity of fixed modules (in space, stock, production).

Single emission lines for outdoor application. The warm white LED light source is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 1.020 kg. The power supply cable is included and features a 0.25 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99913 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

Aluminium die cast housing in EN AB-44100 (low copper content) with high resistance against corrosion. Stone wash surface treatment prior to painting process. 2 mm thick front trim in Stainless Steel - Grade AISI 316L with 2,5 -3% molybdenum content, with high resistance against corrosion. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets. Painting Process : 3 Step Process.

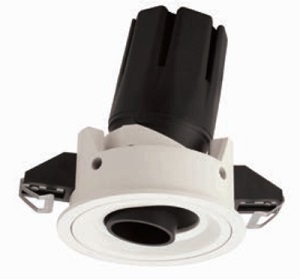

DOT family is a range of small recessed wall luminaires with LED light sources. The glare-free cover enables DOT to be installed where comfortable illumination is required. Fitted with world renowned LED manufacturer DOT is highly efficient with low energy consumption. DOT is available in four different design with interchangeable front covers in both square and round shapes. The very small and shallow housing allow the installation of the fixtures in wall or step that have limited recessing depth. DOT is regularly used to illuminate stairways and pathways where directional low level light is preferred.
