XAL

ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

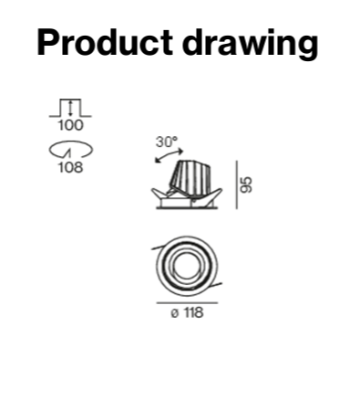

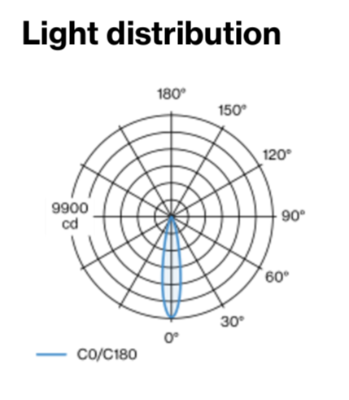

SASSO 100 round adjustable 048-2720217S 048-2796317 002-90766

Round recessed spotlight in die-cast aluminium; 1 lamp; surface traffic white; 360° rotatable and 30° tiltable; installation without tools in mounting set due to patented ball catch system; round installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows; light colour 3500 K; ≤ 2 SDCM (initial MacAdam); CRI ≥

Specification

Power
26.7W
Color Temperature
3500K
Light Source Type
LED
Lumen Output
1840
Finishing
WHITE
IP Rating
40
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

ELR
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING


LIGHTFORMS
SUSPENDED PENDANT LIGHT
INDOOR LIGHTING

Platform is an indirect, linear luminaire that can offer optional downlight spots (see specification sheet). Suspended mounting only.

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a spot light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.192 kg. The power supply driver is not provided and is to be ordered separately. The device features protection class III and can be ceiling-mounted, with a 64 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
LINEALIGHT
BOLLARD
OUTDOOR LIGHTING

Radial diffusion bollard & pole for outdoor application. The warm white LED light source with a asymmetric 180° light distribution is composed of 1 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a grey ral 7021 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP65, IK09.
