XAL

RECESSED DOWNLIGHT
INDOOR LIGHTING
SASSO 60_048-2602011F 048-2696318 002-90790

Round recessed downlight in die-cast aluminium housing, surface in jet black finishes. 360° rotatable and 30° tiltable. Suitable for ceiling thickness of 2-25 mm, passive cooling of the LEDs through improved heat sink geometry with COB (Chip on Board) technology for maximum efficiency. No appearance of multiple shadows. IP40

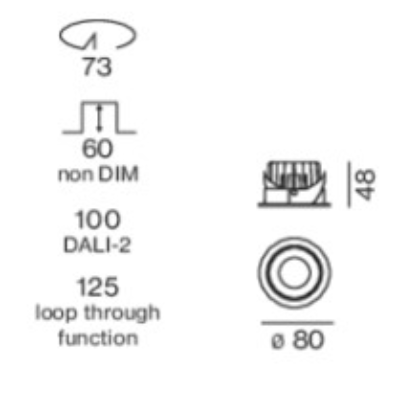

DIMENSION : Ø80*H48MM

Specification

Power
12.5W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
889LM
Finishing
BLACK TRIM / BLACK REFLECTOR
IP Rating
IP44
Color Rendering
CRI 90
Driver
DALI DRIVER

See more

SPARK
TRACKLIGHT
INDOOR LIGHTING
Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request. It come with different types of bean angles.
IGUZZINI
TRACKLIGHT
INDOOR LIGHTING

Adjustable spotlight with adapter for installation on DALI track for high output LED lamp with monochrome emission in a warm White (3,000K) tone. DALI ballast integrated in the product. Luminaire made of die-cast aluminium and thermoplastic material, allows 360° rotation about the vertical axis and 90° tilting relative to the horizontal plane.

PLATEK
INGROUND UPLIGHT
OUTDOOR LIGHTING

In-ground luminaire made of aluminium alloy body. Locking flange in AISI 316L stainless steel. A4 Stainless steel screws. Subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and final sealing. Installation of the recessed housing is cast concrete with a 20-30cm gravel soakaway. IP67, IK10

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source with a extra wide flood light distribution is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 2.500 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99765 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
