MEYER

WALL LIGHT

OUTDOOR LIGHTING

8 781 146 009

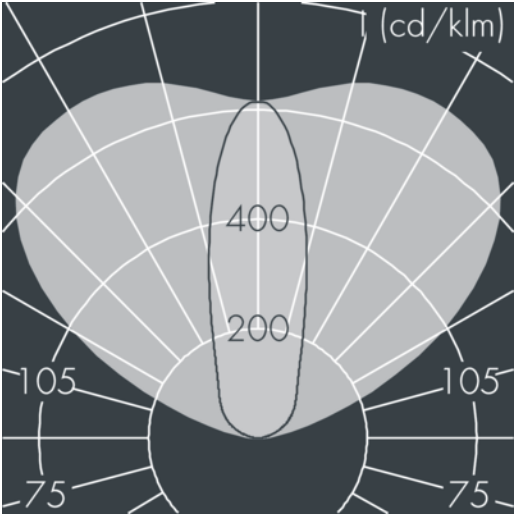

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, with partial frosting for uniform light diffraction and dark silk‑print, silicon gasket, closure with 4 stainless steel screws, wall bracket: 2 drilled holes Ø 7 mm, spacing 35 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, highly efficient optics made of transparent thermoplastic for precise lighting tasks , integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L80/B20 > 50.000 h, Beam angle (fwhm): 32° / 128°, luminous flux: 1521 lm, wattage: 28 W, delivered lumens 54 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,032 m², dimensions (L×H×W): 472 × 50 × 62 mm, weight 2.1 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

Specification

Power

28W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1521LM

Finishing

DIE-CAST ALUMINUM

IP Rating

IP65

Color Rendering

CRI>80

Driver

ON/OFF DRIVER

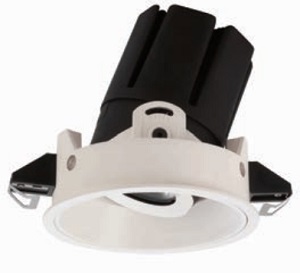

SPARK

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Recessed adjustable square downlight, luminaire body made of aluminium housing with white powder coated finish. Black finish and Honeycomb accessory available upon request.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium flood light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.128 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m lenght. The device features protection class III and can be ceiling-mounted, with a 35 mm diameter hole (in plasterboard) with an outer casing, code 99848 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

LIGHTFORMS

SUSPENDED PENDANT LIGHT

INDOOR LIGHTING

The Target Line is increasingly becoming a Light Forms classic. Many lighting design opportunities here. All the mounting options, including track. A huge range of LED optics (wide, narrow, black, chrome, white..). Integral control gear, in a very compact form. The Target Line can have integrated Linear LED, but the main feature with the Target Line is the precision Low Glare optics. These precision optics allow plenty of lumen range, in a Low Glare, compact package. The aesthetics and size of the Target Line mean its got the correct look and performance for all applications. Control gear is always integral, despite the compact form - and the full range of extras is available - sensors (CP, Simmtronic, Hytronik, Tridonic + Others), emergency, daylight harvesting, Casambi, Power over Ethernet (PoE) & many other integrated additions.
