IGUZZINI

RECESSED DOWNLIGHT
INDOOR LIGHTING

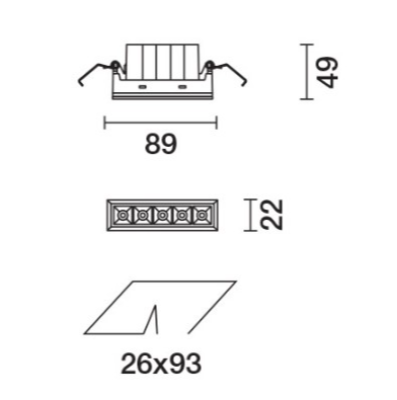

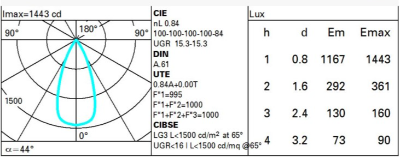

Laser Blade XS-002214

Miniaturized lighting fixture Laser Blade XS Linear optical element with 5 cells (5 LEDs) Recessed lighting fixture with a radiant surface in die-cast zama, complete with springs for installation. Flush ceiling version. For recessed installation in false ceilings, a specific adapter is required, available with a separate code. LED Single Chip High Power 3500K LED Color Rendering Index -CRI90- High-definition Opti Beam reflector in metallized thermoplastic material. FLOOD optics.

Specification

Power
8.9W
Color Temperature
3500K
Light Source Type
LED
Lumen Output
790LM
Finishing
BLACK
IP Rating
IP20
Color Rendering
CRI 90
Driver
DALI DRIVER

See more

ROLEDS
RECESSED DOWNLIGHT
INDOOR LIGHTING


FLOS
WALLWASHER
INDOOR LIGHTING
Recessed luminaire with LED light source. Power supply not included. Installation frame not necessary. The ingress protection degree is IP20.
MEYER
POLE LIGHT
OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, for installation on poles Ø 60 ‑ 100 mm, tiltable base made of powder coated aluminum, 2 drilled holes Ø 9 mm, spacing 95 mm, 1 centre hole Ø 13.5 mm, tilt range: 90°, 360° adjustable, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 25°, luminous flux: 1729 lm, wattage: 23 W, delivered lumens 75 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,016 m², dimensions (L×H×W): 126 × 97 × 126 mm, weight 1.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

PHOS
RECESSED DOWNLIGHT
OUTDOOR LIGHTING
Reduced glare design with unique, elegant pinhole aperture.Flawless finishes available on all components. 60min fire-certified. Acoustic-rated , UK designed, manufactured & assembled. Supplied with smooth (trailing edge) mains dimming driver
