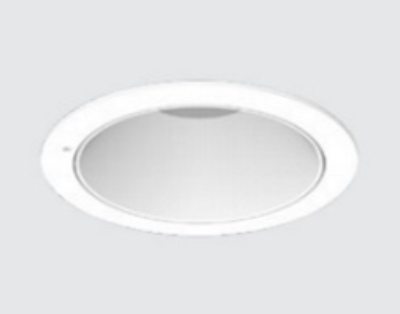

VASARI-PRO-3.X.RD.FX.WH.WH

A series of premium recessed downlights available in various sizes, shapes, and finishing. Paired with ELR’s highly configurable LED modules, the Vasari downlight series offers a high degree of flexibility, aesthetics and functionally for the most discerning of applications

Specification

Power
7.5W
Color Temperature
3500K
Light Source Type
LED
Lumen Output
1191LM
Finishing
WHITE
IP Rating
IP40
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more
