IGUZZINI

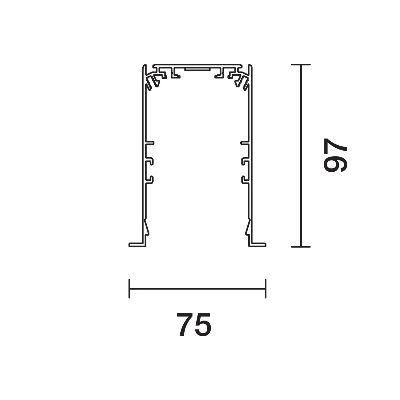

Luminaire made of die-cast aluminium end-caps and extruded aluminium profile with powder coating. Single cable entry, stainless steel fasteners in grade 316. PMMA diffuser with Opal (UGR <19) and micro prismatic (UGR <13) options for better glare control. Up and down light distribution options. Passive thermal management and integral control gear. Wireless control available through Bluetooth connection. Daylight and occupancy sensor options. Emergency module (1 or 3 hours) is available upon request with 3 options (BASIC, SELF-TEST, PRODALI). IP20.

Advanced, multi-functional LED surface mounted projector, tiltable vertically 0°-90° and rotatable horizontally 350°. With built-in bidirectional zooming lens with sharpness adjustability, and lens rotation. Adjustable shutters to re-frame the beam to the desired size and shape (circle, square/rectangle, or irregular four-sided shapes). Compatible with Gobo insertion for logo. High-precision optics for sharp outlines and a high degree of lighting uniformity.

The luminaire is made of cast aluminium, designed as heat sink, with connection cable L 500mm. Fixing springs for ceiling thicknesses of 1-40mm. 4-pole terminal block. Includes ERCO DALI control gear. LED module: high-power LEDs. Lens system made of optical polymer. Anti-glare cone with covered mounting detail: polymer, black. Optical cut-off 30°. Dimming possible via commercially available push-buttons (Push Dim). The luminaire is protected on the room side against splashing water.

IP67 flexible 24 V linear LED strip up to 7.5 m in length. Polyurethane encapsulation offering a premium water proof sealing, UV resistance, chemical stability against urban gazes and protection against abrasion. White lower casing for higher efficiency (better light extraction). Delivered with 200 mm IP67 mini connectors on both ends. The first choice for homogeneous indirect outdoor or humid cove lighting and other non-directly viewed applications with medium luminaire-surface distance requiring IP67 ingress. Constant voltage LED strip with a step measurement of 125 mm and a small LED pitch of 17.86 mm. Assembled using state of the art automated Reel-to-Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.
