Product Detail | Bloxlimited

MEYER

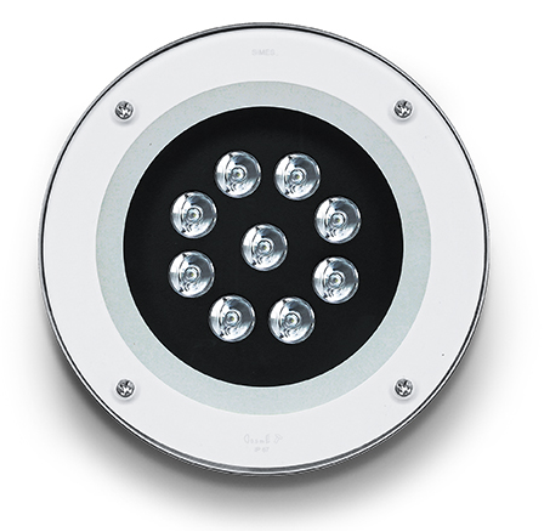

INGROUND UPLIGHT

OUTDOOR LIGHTING

8 659 016 029

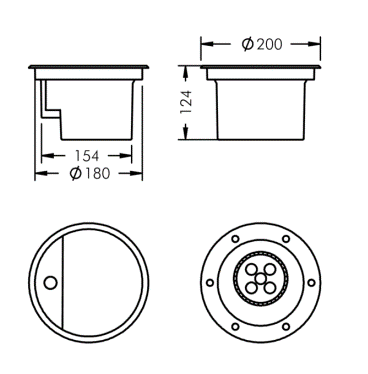

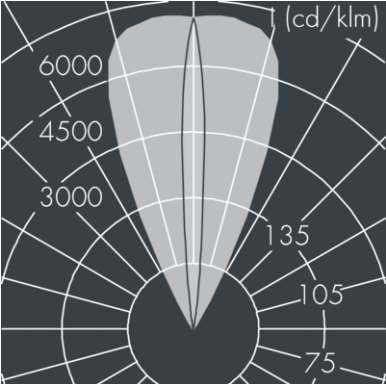

Housing of corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, dark screenprint, for loads up to max. 5000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, cover frame and closure with 6 stainless steel screws, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector, lockable, tilt range: 0‑15, 0,8 m cable H07RN‑F3G1,5, integral control gear, CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 8° / 47°, luminous flux: 369 lm, wattage: 5 W, delivered lumens 72 lm/W, protection type IP67, protection class I, impact resistance IK10, dimensions: Ø 200 mm, width 124 mm, weight 3.3 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

369LM

Finishing

DIE-CAST ALUMINUM

IP Rating

IP67

Color Rendering

CRI>80

Driver

ON/OFF DRIVER

SPARK

TRACKLIGHT

INDOOR LIGHTING

Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Black finish and honeycomb accessory available upon request. It come with different types of bean angles.

LINEALIGHT

WALL LIGHT

OUTDOOR LIGHTING

Double emission wall lights for outdoor application. The warm white LED light source with a medium wide flood light distribution is composed of 2 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65; the total weight is of 1.99 kg. The device features protection class I and can be wall lights-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

Single emission ceiling lights for indoor application. The warm white LED light source with a diffused light distribution is composed of 78 topled LEDs with CCT of 3000 K and a CRI 80; the source luminous flux is 8190 lm, with a 136.5 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of pmma. The ingress protection degree is IP20; the total weight is of 11.32 kg. The device features protection class I and can be ceiling-mounted, with a 655 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

XAL

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Round adjustable recessed spotlight in die-cast aluminium and surface in traffic white finishes. 360° rotatable and 30° tiltable. Installation without tools in mounting set due to patented ball catch system. Suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows.
