Products

LIGHTFORMS

SUSPENDED PENDANT LIGHT
INDOOR LIGHTING

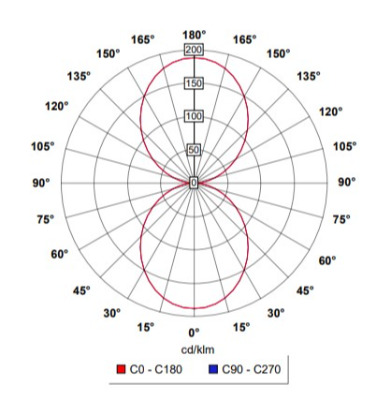

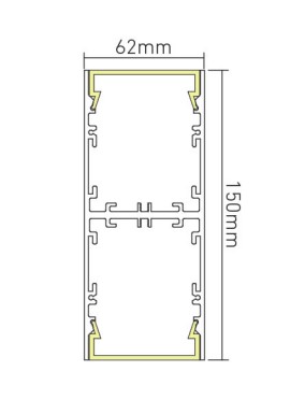

HB-VS-SQ-2831.-MINLOW-930-NON-9010-LF186234

H Beam is a compact and streamlined, suspended or wall mount fixture. The extruded aluminium channel provides both direct and indirect illumination. Integral driver configuration with flush lens. Individual or continuous row mounting. A low UGR option is available with a prismatic lens. IP40 rated. Integral Driver.

Specification

Power
23.8W/M
Color Temperature
3000K
Light Source Type
LED
Lumen Output
8622LM/12724LM
Finishing
WHITE
IP Rating
IP40
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

XAL

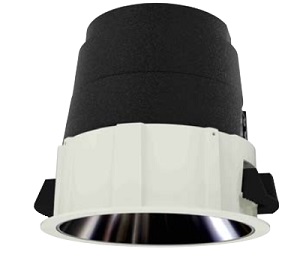

RECESSED DOWNLIGHT
INDOOR LIGHTING

Round recessed spotlight in die-cast aluminium; surface traffic white powder coated; with trim; suitable for ceiling thickness of 2-25 mm; installation without tools using snap spring closure; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; ≤ 3 SDCM (initial MacAdam); CRI ≥ 80; min. 80% of luminous flux after 50000 operating hours; energy efficient LEDs with high CRI; reflector made of polycarbonate, polished chrome.

WE-EF
WALLWASHER
OUTDOOR LIGHTING
Marine-grade, all-aluminium construction. 5CE superior corrosion protection including PCS hardware. PMMA lens. Silicone rubber gaskets. 1.2 m of flexible PVC-free cable. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. DALI interface.
FLOS
SURFACE MOUNTED DOWNLIGHT
INDOOR LIGHTING

Spotlight to be installed on ceiling with LED light source. 220-240V, 50-60Hz remote power supply included.

XAL
RECESSED SPOTLIGHT
INDOOR LIGHTING

Round spotlight element in aluminium; surface black powder coated; installation without tools in mounting set due to patented ball catch system; recessed light with wrap around edge; suitable for ceiling thickness of 2-25 mm; spotlight element height adjustable without tools: flush with the ceiling, or extended 25 mm or 35 mm; 360° rotatable and 90° tiltable; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency;
