SIMES

FOOT LIGHT

OUTDOOR LIGHTING

S.6060W.09

This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class (EPREL - European Product Registry for Energy Labelling): F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80).

Specification

Power

4.8 W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

193 lm

Finishing

BLACK

IP Rating

IP65

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LED LINEAR

LED NEON TUBE

OUTDOOR LIGHTING

IP67 flexible 24 V linear LED strip up to 7.5 m in length. Polyurethane encapsulation offering a premium water proof sealing, UV resistance, chemical stability against urban gazes and protection against abrasion. White lower casing for higher efficiency (better light extraction). Delivered with 200 mm IP67 mini connectors on both ends. The first choice for homogeneous indirect outdoor or humid cove lighting and other non-directly viewed applications with medium luminaire-surface distance requiring IP67 ingress. Constant voltage LED strip with a step measurement of 125 mm and a small LED pitch of 17.86 mm. Assembled using state of the art automated Reel-to-Reel (R2R) production process supporting LED Linear™ Tj Away thin flexible circuit board technology.

FLOS

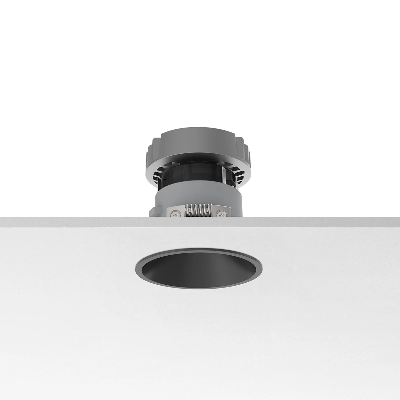

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Eclectic Ø90. Adjustable Downlight (40º tilt, 360º rotation). “Flat” style façade. Necessary installation pre-frames, not included (to be ordered separately). Recessed position of the LED: 49º cut-off angle. IP20 water tightness (for IP54, please ask the dedicated accessory). Alternative options for lenses, orientation modules and style façades are available as spare parts. The ingress protection degree is IP20.

BEGA

BOLLARD

OUTDOOR LIGHTING

Bollard with single sided light output and asymmetrical shielded light distribution. The light is directed downwards and is completely shielded above the horizontal. The greatest degree of illuminance is generated in the immediate vicinity of the luminaire. Luminaire made of aluminium profile, aluminium alloy, aluminium and stainless steel, IP65,IK10. DIMENSION: (WIDTH)270x(HEIGHT)1000x(DEPTH)120mm.
