LINEALIGHT

PROJECTOR LIGHT
OUTDOOR LIGHTING
PERISKOP_95378M15

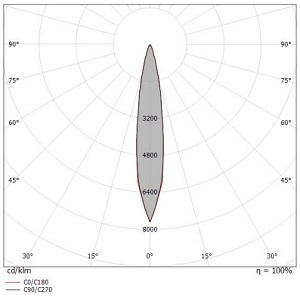

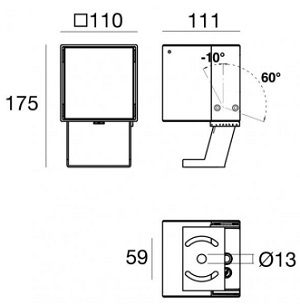

Single emission projectors for outdoor application. The super warm LED light source with a spot light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 2349 lm, with a 130.5 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP66.

Specification

Power
18W
Color Temperature
2700K
Light Source Type
LED
Lumen Output
1796LM
Finishing
DARK BROWN
IP Rating
IP66
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

MEYER
HANDRAIL LIGHT
OUTDOOR LIGHTING

Nanodot are miniature luminaires for flush installation into round handrails made of metal. Discreet and completely glare-free, these luminaires achieve uniform illumination on paths and stairs. Precise optics create asymmetrical or wide beam light distributions and make large luminaire spacings possible. The luminaires can be retro-fitted into existing handrails on site.

UNILAMP
UNDERWATER LIGHT
OUTDOOR LIGHTING
ATOM is a ground recess indicator light and is also suitable for under water light application. ATOM has been designed and manufactured at highest attribute. Utilizing CNC lathed stainless steel body presented exceptional aesthetic as well as sleek tough feeling. LED chips and lenses are from world renowned manufacturers. GFR polymer recess kit allows it to be installed in most extreme environment. Ensuring integrity of manufacture ATOM is supplied with a factory fitted pre-wide cable for ease of installation. The Anti-Humidity kit eliminate condensation inside the housing and prolong the life time of the luminaire. An optional IP68 connectors is recommended as an accessory for trouble free installation.
DALITEK
CONTROL SYSTEM
CONTROL SYSTEM

6 channels 10A/CH switch output, 6 channels 0-10V control signal. Switch relays and 0-10V channels can be controlled separately. 220V ± 10% 50Hz Single phase 0.1A. Phase-independent. Control input: 1 × RS485 network serial port input; 1 × AUX dry contact input. Internal control: Build in programmable logic controller. Network DC power: 90mA DC12V. Presets scenes: 96 (no loss of information due to power failure. DIN rail installation

BEGA
FOOT LIGHT
OUTDOOR LIGHTING

Recessed wall luminaire for flush- or surfacemounted installations. Highly efficient glare suppression und minimal diffuse light percentage due to the integrated black louvre.
