FLOS

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, mounting bracket: 1 elongated hole Ø 7 mm, spacing 18 mm, 1 centre hole Ø 8.5 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 6°, luminous flux: 563 lm, wattage: 7 W, delivered lumens 77 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,008 m², dimensions (L×H×W): 85 × 86 × 85 mm, weight 0.9 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

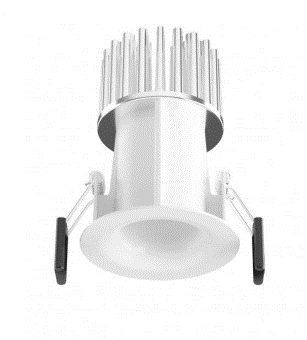

The luminaire is made of cast aluminium, designed as heat sink, with connection cable L 500mm. Fixing springs for ceiling thicknesses of 1-40mm. 4-pole terminal block. Includes ERCO DALI control gear. LED module: high-power LEDs. Lens system made of optical polymer. Anti-glare cone with covered mounting detail: polymer, black. Optical cut-off 30°. Dimming possible via commercially available push-buttons (Push Dim). The luminaire is protected on the room side against splashing water.

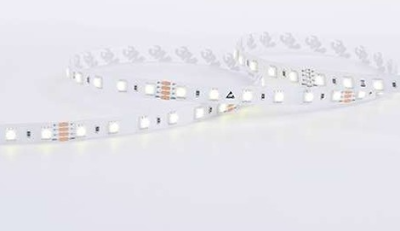

Single emission led strip for outdoor application. The warm white LED light source with a medium wide flood light distribution is composed of 36 topled LEDs with CCT of 3000 K and a CRI 85; the source luminous flux is 2300 lm, with a 115.0 lm/W nominal luminous efficacy. The device body is made of technopolymer and features a white finish; the diffuser is made of pu. The ingress protection degree is IP67; the total weight is of 0.290 kg. The power supply driver is not provided and is to be order

The Maxi Eclipse Mini Trim is an adjustable, recessed downlight with a Ø120mm Bezel and features a beautifully sculpted anti-glare baffle. The Maxi Is a high output downlight while still maintaining a surprisingly compact form. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires. 360° rotation, 28° Tilt.
