MEYER

FLOODLIGHT

OUTDOOR LIGHTING

8 994 046 049

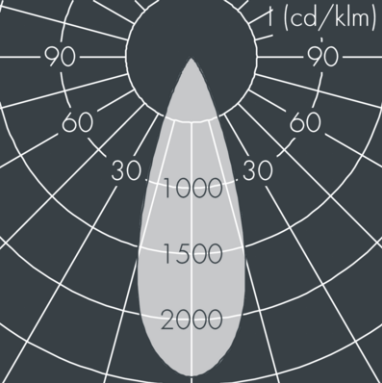

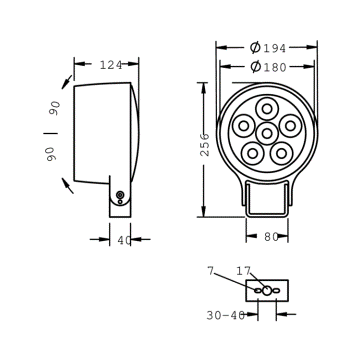

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, mounting bracket: 2 drilled holes Ø 7 mm, spacing 30‑40 mm, 1 centre hole Ø 17 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 35°, luminous flux: 2385 lm, wattage: 46 W, delivered lumens 52 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,025 m², dimensions: Ø 194 mm, width 124 mm, weight 2.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Specification

Power

46.2W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2385LM

Finishing

DIE-CAST ALUMINUM

IP Rating

IP67

Color Rendering

CRI>80

Driver

ON/OFF DRIVER

LINEALIGHT

UNDERWATER LIGHT

OUTDOOR LIGHTING

Single emission submerged for outdoor application. The natural white LED light source with a mix flux 2 asymmetric + flood light distribution is composed of 9 powerled LEDs. The luminaire body is made of stainless steel and features a steel finish; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68,IK10.

LIGMAN

INGROUND UPLIGHT

OUTDOOR LIGHTING

Die-cast aluminium housing. Pre-treated before powder coating ensuring high corrosion resistance. 5.5 mm thick front ring in grade 316 stainless steel. Single cable entry, through wiring upon request. Stainless steel fasteners in grade 304 with zinc flake coating (ZFC). Durable silicone rubber gasket. High-efficiency PMMA lens. Clear or frosted toughened glass. Integral control gear. Recessing box in high-density polyethylene is included. Suitable for drive-over with a maximum load of 2000 kg. Vehicles with pneumatic tires can drive over the luminaire but the speed must not exceed 50 km/h. Load is transferred by the housing to the foundation. The distance between the floodlight and the illuminated surface should be at least 0.5 m

IGUZZINI

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Round swivel luminaire with 355° internal rotation and max 30 tipping movement, designed to use LED lamps with C.o.B. technology. Version compatible with Blade R diam 170mm (18LED) complete with device for coupling it to the luminaire and DALI control gear. The main swivel body is made of die-cast aluminium with a radiant surface that guarantees optimum heat dissipation. Metallised, thermoplastic, high definition reflector - medium optic (26°). Structure with die-cast aluminium external surface frame. The internal ring is made of thermoplastic available in a range of painted and metallised finishes.
