MEYER

FLOODLIGHT

OUTDOOR LIGHTING

8 994 046 059

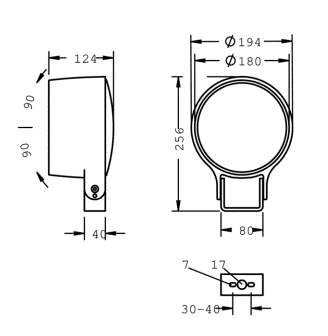

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, mounting bracket: 2 drilled holes Ø 7 mm, spacing 30‑40 mm, 1 centre hole Ø 17 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, highly efficient faceted rotationally symmetrical reflector, integral driver (AC/DC), CRI > 85, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 89°, luminous flux: 3572 lm, wattage: 46 W, delivered lumens 78 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,025 m², dimensions: Ø 194 mm, width 124 mm, weight 3 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Specification

Power

46W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

3572LM

Finishing

DIE-CAST ALUMINUM

IP Rating

IP67

Color Rendering

CRI>80

Driver

ON/OFF DRIVER

LIGHTFORMS

WALL LIGHT

INDOOR LIGHTING

Cygnus came about due to demand for a track fitting following the style and theme of all our designs, ie: simple, strong and well finished. Cygnus utilises the LEDil reflectors for a perfect and reliable light shape. The extruded aluminium housing and is available in our full range of finishes. Cygnus is supplied as standard with a Tridonic in track adapter, so the control gear is integral. Other adapters are available, but should be specified to the factory.

PHOS

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

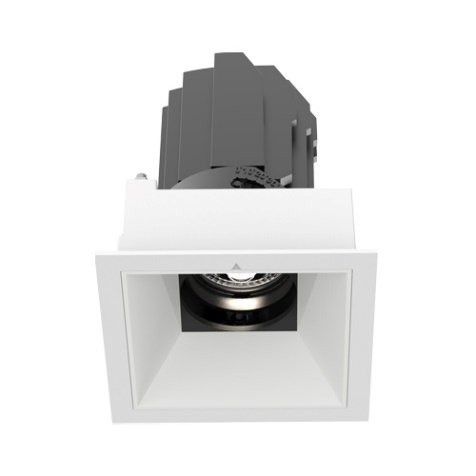

The Nano Eyeconic Mini Trim Fixed is an incredibly discreet recessed, directional downlight with a Ø38mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. Easily interchangeable optics. Flawless finishes available on all components.

BEGA

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

PRIMA Recessed ceiling downlight with connecting cable for installation into concrete ceilings or suspended ceilings both indoors and out. With symmetrical wide beam light distribution.Luminaire made of aluminium alloy, aluminium and stainless steel BEGA Unidure® coating technology. Colour graphite or white Clear safety glass. Reflector surface made of pure aluminium. Luminaire housing with 2 fixing claws and guide screws
