MARSET

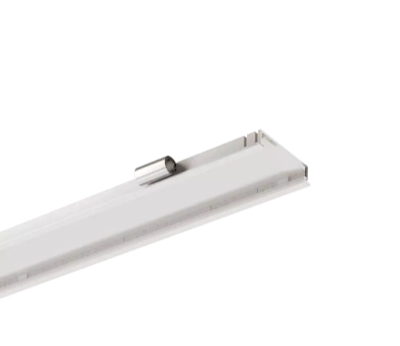

Single emission submerged or led strip for outdoor application. The natural white LED light source with a diffused light distribution is composed of 560 topled LEDs with CCT of 4000 K and a CRI >90; the source luminous flux is 6029 lm, with a 120.6 lm/W nominal luminous efficacy. The device body is made of technopolymer and features a white finish; the diffuser is made of pu. The ingress protection degree is IP68, IK07.

Recessed downlight made of aluminium housing and white powder coated finishing. Highly efficient PMMA optical lens uniform distribution beam. IP20 and IP44 protection. IK05

"Copper Free" Aluminium extruded EN AW-6060 with high resistance against corrosion, caps in "Copper Free" Aluminium die cast housing in EN AB-44100 with high resistance against corrosion. Stone wash surface treatment prior to painting process. 3 mm thick front trim in Stainless Steel - Grade AISI 316L with 2,5 -3% molybdenum content, with high resistance against corrosion. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets. Painting Process: 3 Step Process 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 09 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: E. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

Single emission uplights for outdoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The luminaire body is made of aisi 316l steel and features a steel finish; the diffuser is made of extra clear glass with a silk-screening treatment. The ingress protection degree is IP68.
