LINEALIGHT

INGROUND UPLIGHT
OUTDOOR LIGHTING
Beret_2R 83565W08

Single emission uplights for outdoor application. The natural white LED light source with a narrow spot light distribution is composed of 1 powerled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 266 lm, with a 166.3 lm/W nominal luminous efficacy. The device body is made of brass ot58 and features a polished (galvanic) chrome finish, processed by means of galvanic chromium plating. The ingress protection degree is IP67

Specification

Power
1.6W
Color Temperature
3000K
Light Source Type
Lumen Output
170LM
Finishing
STAINLESS STEEL
IP Rating
IP67
Color Rendering
CRI 80
Driver
0-10V DRIVER

See more

LIGHTFORMS
RECESSED LINEAR LIGHT
INDOOR LIGHTING
Lightplane 1 Concave Recessed Trim is a small, recessed slot light with a trim. The fixture features arching, interior sides that lead to a slightly recessed lens within the channel. The fixture is available with multiple lamping options including LED, tunable white LED and RGB+W colourchanging LED.
NEKO
RECESSED DOWNLIGHT
INDOOR LIGHTING
Round recessed mounted downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; ON-OFF Driver; measurement Ø84mm; narrow mounting trim with a cutout of Ø75mm; luminaire's weight is approximately 280g; CCT 3000K with an LED Output of 900lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; degree of housing protection according to DIN EN 60529 (IP54)
PLATEK
SUSPENDED PENDANT LIGHT
DECORATIVE LIGHTING

Outdoor suspension pendant light made of milled steel and die cast aluminium material. Stainless steel rod and used with diffusers to seal the lamp polymethylmethacrylate (PMMA) is used, so we obtain characteristics of high transparency, UV resistance and scratch resistance. No visible screws. Subjected to galvanic anodizing treatment divided into distinct phases. Mechanical satin finishing, surface degreasing, anodic oxidation and final sealing. IK07

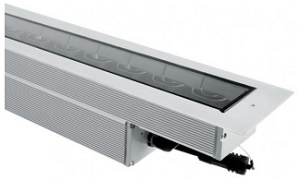

LINEALIGHT
WALLWASHER
OUTDOOR LIGHTING
Single emission lines for outdoor application. The warm white LED light source with a extra wide flood light distribution is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 2.010 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99764 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
