DOT family is a range of small recessed wall luminaires with LED light sources. The glare-free cover enables DOT to be installed where comfortable illumination is required. Fitted with world renowned LED manufacturer DOT is highly efficient with low energy consumption. DOT is available in four different design with interchangeable front covers in both square and round shapes. The very small and shallow housing allow the installation of the fixtures in wall or step that have limited recessing depth. DOT is regularly used to illuminate stairways and pathways where directional low level light is preferred.

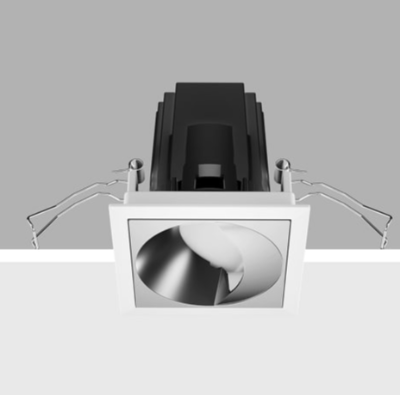

Recessed fixed downlight made of aluminium housing with white powder coated finish. Inner reflector available in Silver, Chrome black, Mirror chrome and white color finish.

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, for installation on poles Ø 60 ‑ 100 mm, tiltable base made of powder coated aluminum, 2 drilled holes Ø 9 mm, spacing 95 mm, 1 centre hole Ø 13.5 mm, tilt range: 90°, 360° adjustable, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 5°, luminous flux: 2855 lm, wattage: 46 W, delivered lumens 62 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,027 m², dimensions: Ø 194 mm, width 124 mm, weight 2.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Die-cast EN AB-44100 aluminium housing (copper free) with high corrosion resistance. Marine grade stainless steel AISI 316L 3 mm thick for RING or aluminium front trim for FLAT. Toughened glass diffuser 12mm thick for MICRORING, 15mm thick for MINIRING, 19mm thick for RING/MEGARING, 10mm thick for MICROFLAT, 12mm thick for MINIFLAT, 15mm thick for FLAT/MEGAFLAT. Stainless steel screws. Luminaire hard wired with single neoprene cable with cable gland. Fast connector IP68 included. Recessing box in polypropylene. Silicone gaskets.
