MEYER

SPOTLIGHT

OUTDOOR LIGHTING

8 308 246 019

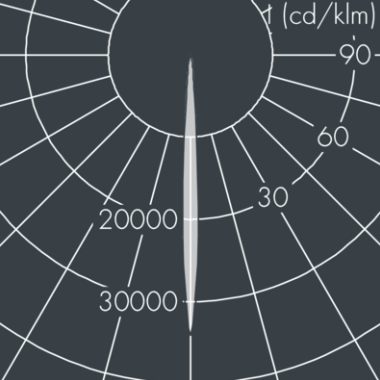

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, housing locked with a grub screw, ceiling mounting: 2 drilled holes Ø 4.5 mm, spacing 35 mm, cable gland: cable entry for recessed cable Ø 7‑10 mm , connecting terminal: 3 pole, highly efficient aluminum hybrid‑reflector with lens for narrow beam control , integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 6°, luminous flux: 326 lm, wattage: 5 W, delivered lumens 65 lm/W, protection type IP65, protection class I, impact resistance IK07, windage area 0,005 m², dimensions (L×H×W): 61 × 87 × 66 mm, weight 0.57 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

326LM

Finishing

DIE-CAST ALUMINUM

IP Rating

IP65

Color Rendering

CRI>80

Driver

ON/OFF DRIVER

LUCI

LED STRIP

INDOOR LIGHTING

Revolutionize designs with sleek 5.8mm dot-free tape light! 535 lm/m, 810 lm/m. Beautiful surface emission enhances the versatility of design possibilities. Available in 160 different lengths ranging from 25mm to 4000mm for indoor specification. Delivered CCT please see website for better precision. Available with 0-10V/1-10V, DMX, DALI, PWM control

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.078 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 46 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

PHOS

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

The Eyeconic Round Fixed is a recessed, fixed downlight with an ø80mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires.
