Outdoor Spotlight housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process. Exterior parts are stainless steel, 2 tempered safety glasses: waterproof space for optical film and honeycomb louvres, dark screen print, silicon gasket, closure with 2 stainless steel screws and mounting bracket. IP65 IK08

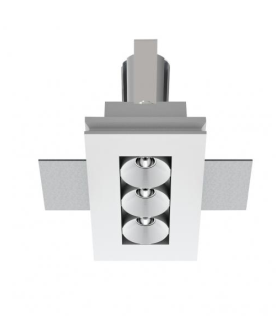

Edge90 fixed fire rated downlight with Ø45mm black Edge aperture and supplied with a separate installation kit with overlap flange for finished ceilings. Available in both white or black finish as standard. This product can accommodate the Lucent LED50 ONE GEN2 (90CRI) or LED50 ONE ULTRA (98CRI). This Fire Rated product was tested in a timber joist ceiling construction consisting of double thickness plasterboard ( 2 x 12.5mm) , wooden joists and (Egger) chipboard flooring.

Housing made of extruded aluminum and corrosion‑resistant die‑cast aluminum AlSi12, double polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass flush with frame, anti‑reflective coating from 1 side, for loads up to max. 5000 kg (according to IEC / EN 60598‑2‑13), silicon gasket, stainless steel cover frame and closure with stainless steel screws, cable gland: M20 (stainless steel), connecting terminal: 3 pole, integral control gear, CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 10° / 99°, luminous flux: 1256 lm, wattage: 26 W, delivered lumens 48 lm/W, protection type IP67, protection class I, impact resistance IK09, dimensions (L×H×W): 635 × 99 × 122 mm, weight 7.7 kg The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

The recessed spot OIKO from the familiy OIKO consists of aluminum-die-cast. The article can be powder coated in 25 colours. Stated photometric values correspond to operation by 700 mA; a suitable ballast needs to be sourced separately and is not scope of delivery. Dimming (# 22345) depends on the used ballast and may vary. The spot with direct illumination corresponds to protection class SK3 at IP20. ZERO LIGHT LEAKAGE technology guarantees trouble-free use in acoustic ceilings.
