MEYER

SPOTLIGHT
OUTDOOR LIGHTING
8 981 046 019

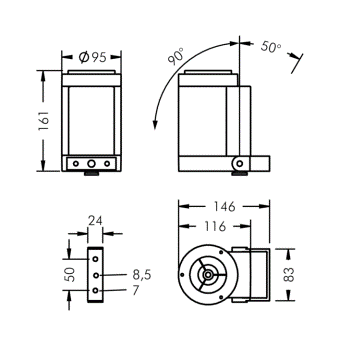

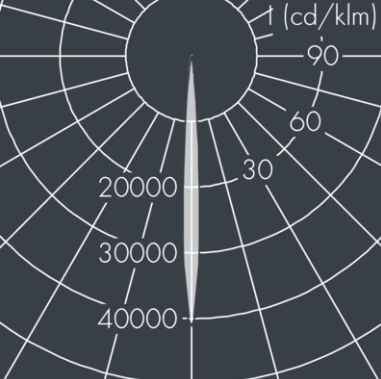

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered high effiency safety glass, anti‑reflective coating from 1 side, silicon gasket, with 3 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 7 mm, spacing 30 mm, 1 centre hole Ø 8.5 mm, tilt range: 140°, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector with matt finish, integral driver (AC/DC), 80, max 2 SDCM, service life L80/B20 > 50.000 h, Beam angle (fwhm): 6°, luminous flux: 1211 lm, wattage: 19 W, delivered lumens 58 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,01 m², dimensions: Ø 95 mm, width 165 mm, weight 1.5 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Specification

Power
19W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1211LM
Finishing
DIE-CAST ALUMINUM
IP Rating
IP65
Color Rendering
CRI>80
Driver
ON/OFF DRIVER

See more

SPARK
TRACKLIGHT
INDOOR LIGHTING

LED Track adjustable linear light system can be flexibly combined with track spotlights on the same track rail for general lighting & accent lighting. Ultra slim delicate design and flexible rotation for wall washing. It come in 3-wire, 4-wire and 6-wire surface / suspension track. Various of beam angle available.

LINEALIGHT
SURFACE TRACKLIGHT
INDOOR LIGHTING

Single emission projectors for indoor application. The warm white LED light source is composed of 1 arrayled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of powder coating. The ingress protection degree is IP20; the total weight is of 0.612 kg. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

SPARK
RECESSED DOWNLIGHT
INDOOR LIGHTING

Recessed downlight made of aluminium housing with white powder coated finish. Inner reflector available in Silver, Chrome black, Mirror chrome and white color finish. Honeycomb accessory and IP44 available upon request.

XAL
RECESSED DOWNLIGHT
INDOOR LIGHTING

Round recessed spotlight in die-cast aluminium; surface traffic white; installation without tools in mounting set due to patented ball catch system; round installation housing; with trim traffic white; suitable for ceiling thickness of 2-25 mm; passive cooling of the LEDs through improved heat sink geometry; with COB (Chip on Board) technology for maximum efficiency; no appearance of multiple shadows.
