MEYER

SPOTLIGHT
OUTDOOR LIGHTING
8 981 046 049

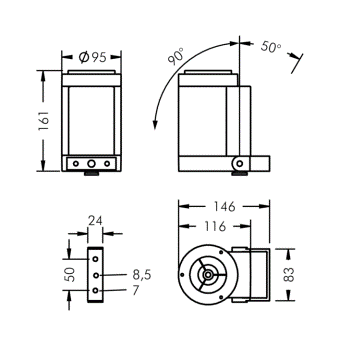

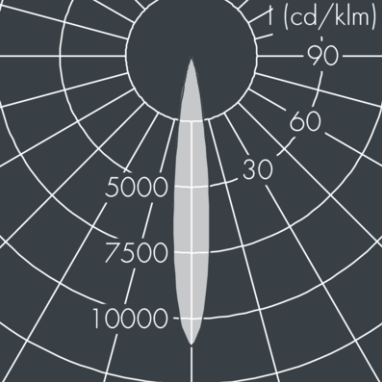

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered high effiency safety glass, anti‑reflective coating from 1 side, silicon gasket, with 3 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 7 mm, spacing 30 mm, 1 centre hole Ø 8.5 mm, tilt range: 140°, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector with matt finish, integral driver (AC/DC), 80, max 2 SDCM, service life L80/B20 > 50.000 h, Beam angle (fwhm): 15°, luminous flux: 1211 lm, wattage: 19 W, delivered lumens 58 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,01 m², dimensions: Ø 95 mm, width 165 mm, weight 1.5 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Specification

Power
19W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
1211LM
Finishing
DIE-CAST ALUMINUM
IP Rating
IP65
Color Rendering
CRI>80
Driver
ON/OFF DRIVER

See more

APEX
SURFACE TRACKLIGHT
INDOOR LIGHTING

Mini sport light made of die cast aluminium housing body. DC24V fixture come with different mounting recessed or surface. Available bean angle from 15°, 25° and 60°and various of color temperature 2700KTO5700k. Suitable forcabinet light and display rack, IP20 .

UNILAMP
RECESSED DOWNLIGHT
OUTDOOR LIGHTING

Characterized by clean and clean-cut lines CORE is a family of square wall light, ceiling light, bollard and pole lights. CORE is available in two sizes and equipped with COB LED in three color temperatures and exceptional color consistency. The computer-aided-design of the parabolic reflector provides efficient light emission and distribution. The housing is dust and water protected through the extensive engineering design and testing. CORE is recommended to illuminate column, facades, walkways and vairous architectural design works. The pole lights give a great level of downward light with symmetric or asymmetric light distributions.

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs. The device body is made of PC, processed by means of coating. The ingress protection degree is IP20; the total weight is of 1.35 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.3 m length. The device features protection class III and can be ceiling-mounted, with a 180 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
DALITEK
CONTROL SYSTEM
INDOOR LIGHTING

DR485-TCP/IP-S is a flexible network connection setup (bridge) for connecting RS485 networks and networks or devices based on the TCP-IP protocol. As an extension of DR485, DR485-TCP/IP-S can achieve a tree-type (main-net and subnet) network structure in a large space area through the TCP-IP network (whether it is the original or the new), and two groups of ports are respectively connected to the high-speed backbone network and the lower-speed subnet.
