LUMASCAPE

Luminaire made of aluminium alloy, aluminium and stainless steel. Clear synthetic cover with optical structure. Reflector made of pure anodised aluminium. Mounting plate with 3 fixing holes ø 6.5 mm. Angle 120° · Pitch circle ø 122 mm. 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 5 G 1.5@ Connecting terminal 2.5@ with plug connection. Earth conductor connection. LED power supply unit 220-240 V x 0/50-60 Hz. DC 176-264 V, During DC operation the LED power is reduced to 50 % DALI controllable. A basic isolation exists between power cable and control line. Safety class I. Protection class IP 65. Dust-tight and protection against water jets. Impact strength IK10. Protection against mechanical. impacts < 20 joule. c – Conformity mark.

Recessed luminaire with LED light source. Power supply not included. Installation frame not necessary. The ingress protection degree is IP20.

Characterized by clean and clean-cut lines CORE is a family of square wall light, ceiling light, bollard and pole lights. CORE is available in two sizes and equipped with COB LED in three color temperatures and exceptional color consistency. The computer-aided-design of the parabolic reflector provides efficient light emission and distribution. The housing is dust and water protected through the extensive engineering design and testing. CORE is recommended to illuminate column, facades, walkways and vairous architectural design works. The pole lights give a great level of downward light with symmetric or asymmetric light distributions.

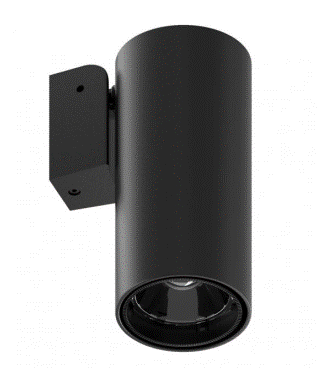

Single emission lines for outdoor application. The warm white LED light source is composed of 6 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 2.9 kg. The power supply cable is included and features a 0.17 m length. The device features protection class I and can be wall lights or ceilingmounted. Compliant with the EN 60598-1 standard and its specific provisions.
