ENDO

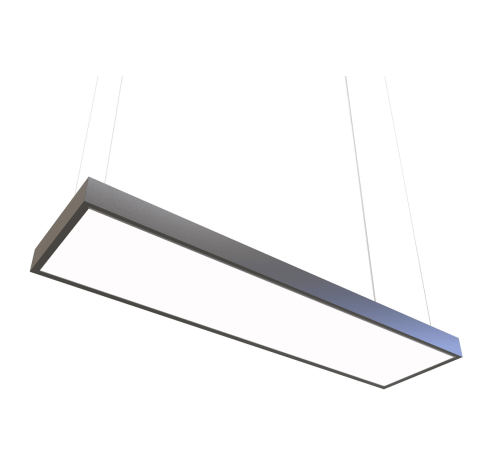

Light Panel Up & Under is a rectilinear panel available in a number of sizes. The fixture provides good output and efficiency with a clean and simple architectural design. Choose either direct only output or both indirect and direct.

Lightplane 2.5 is a compact and streamlined luminaire that provides direct, indirect or directindirect illumination from a suspended, wall or surface mounted channel. The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+White. A Low UGR option is available with a prismatic lens is also available.

FUSION FF3

FF3-9302407F-BB

Square recessed ceiling downlight made of die-cast aluminium with black powder-coating finish (RAL 9005) and black reflector; ON-OFF Driver; LED 7W; measurement 98mm x 45mm; ceiling cutout of 90mm x 37mm with a narrow mounting trim; luminaire's weight is approximately 180g; CCT 3000K with an LED Output of 650lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient OSRAM LED Chips; 5 years warranty; narrow beam characteristic with 24° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work according to DIN EN 12464-1 (UGR<10); degree of housing protection according to DIN EN 60529 (IP20)

Outdoor linear wallwash luminaire come with a narrow spot light distribution composed of 6 power LEDs. Luminaire body is made of aluminium 6060 material and features a anodised aluminum finish. The diffuser is made of extra clear tempered glass with a silk-screening treatment. IP68, IK08
