MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

8 987 046 059

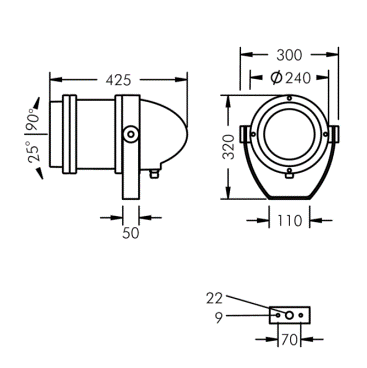

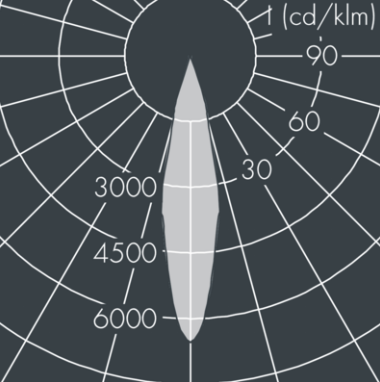

Housing made of extruded aluminum and corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 9 mm, spacing 70 mm, 1 centre hole Ø 22 mm, tilt range: 105°, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), CRI > 80, service life L70/B > 50.000 h, Beam angle (fwhm): 29°, luminous flux: 1066 lm, wattage: 55 W, delivered lumens 19 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,085 m², dimensions: Ø 240 mm, width 425 mm, weight 8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Specification

Power

55W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1066LM

Finishing

BLACK

IP Rating

IP67

Color Rendering

CRI>80

Driver

ON/OFF DRIVER

NEKO

RECESSED DOWNLIGHT

INDOOR LIGHTING

Round recessed downlight made of die-cast aluminium with white powder-coating finish (RAL 9016) and white reflector; ON-OFF Driver; System Power 9W; measurement Ø85mm; ceiling cutout of Ø75mm with a narrow mounting trim; luminaire's weight is approximately 220g; CCT 2700K with a System luminous flux of 550lm; high color rendering at an index of CRI90; after a lifetime of 50000h min. 80% of the luminous flux with energy efficient CITIZEN LED Chips; 5 years warranty; beam characteristic with 35° beam angle; lighting perfectly suitable for reading, writing as well as computer and control work with UGR<19; degree of housing protection IP20 (LED Module IP54) on the visible part of the product once installed; light source replaceable by a qualified electrician; driver replaceable by a qualified electrician

IGUZZINI

WALL LIGHT

OUTDOOR LIGHTING

Outdoor Wall-mounted luminaire in neutral white LED lamps and light blade optic. Luminaire consists of an optical assembly, upper cap and base for fixing to the wall. The optical assembly, upper cap and base are made of die-cast aluminium alloy coated with liquid acrylic paint (grey finish) or textured liquid (white finish) with a high level of resistance to weather and UV rays. The light blade optic lens is made of a two-component material (acrylic and polycarbonate), joined to the optical assembly with silicone. There is a single stainless steel M14x1 cable gland and FEP outlet cables L=150mm, plus an electronic circuit with neutral white LED. All external screws used are made of A2 stainless steel. IP66, IK07

PLATEK

INGROUND UPLIGHT

OUTDOOR LIGHTING

In-ground luminaire made of aluminium alloy body. Locking flange in AISI 316L stainless steel. A4 Stainless steel screws. Subjected to galvanic anodizing treatment divided into distinct phases: mechanical satin finishing, surface degreasing, anodic oxidation and final sealing. Installation of the recessed housing is cast concrete with a 20-30cm gravel soakaway. IP67, IK10
