Product Detail | Bloxlimited

MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

8 987 046 069

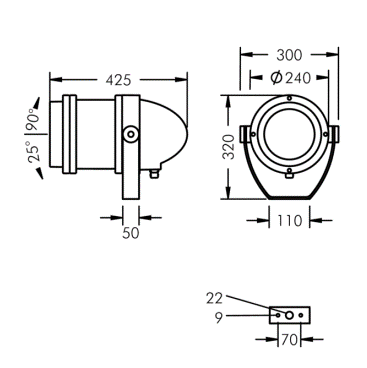

Housing made of extruded aluminum and corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 9 mm, spacing 70 mm, 1 centre hole Ø 22 mm, tilt range: 105°, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), CRI > 80, service life L70/B > 50.000 h, Beam angle (fwhm): 41°, luminous flux: 1483 lm, wattage: 55 W, delivered lumens 27 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,085 m², dimensions: Ø 240 mm, width 425 mm, weight 8.1 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Specification

Power

55W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1483LM

Finishing

BLACK

IP Rating

IP67

Color Rendering

CRI>80

Driver

ON/OFF DRIVER

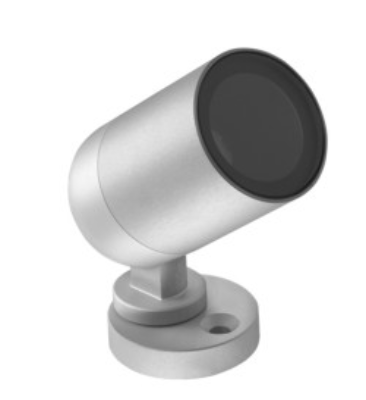

LUCE & LIGHT

SPOTLIGHT

OUTDOOR LIGHTING

Projector for outdoor applications; surface mounted (ceiling, wall, ground, spike, strap); Power consumption: 7W; Power supply: 24Vdc; Lumen output at source: 608 lm (3000K, 7W, CRI >90); Delivered lumen output: 374 lm (3000K, 34°, 7W, CRI >90); 1 high-intensity power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C); LED colour: 2700K; Optics: 34°

LINEALIGHT

INGROUND UPLIGHT

OUTDOOR LIGHTING

Single emission uplights for outdoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The luminaire body is made of aisi 316l steel and features a steel finish; the diffuser is made of extra clear glass with a silk-screening treatment. The ingress protection degree is IP68,IK10.

LIGHTFORMS

WALL LIGHT

INDOOR LIGHTING

Five Bow is a suspended, wall or surface mounted luminaire. With a cross section dimension of just 44mm, the Five Bow body houses a standard LED driver integral to the channel, creating a remarkably low-profile luminaire.

ARTEMIDE

SUSPENDED LINEAR LIGHT

INDOOR LIGHTING

The Alphabet of Light system is a language of light that continues to grow with new curved elements, developing with increasing freedom in spaces. It is a fundamental principle that generates an open system through a few basic modules. Thanks to precise geometric proportions, these modules can be combined to construct infinite structures of light, whether essential or more complex, linear or curvilinear, all environmentally certifiable with EPD (Environmental Product Declaration). The concept by BIG combines with Artemide's optoelectronic expertise to define an innovative construction principle and provide a continuous and comfortable light. It is a minimal presence that encompasses not only highly innovative optoelectronic and patented mechanical components but also management innovations. The system is controllable through the Artemide App to create freedom not only in designing geometries but also in defining dynamic performances, programmable or modifiable in real time.
