MEYER

WINDOW LIGHT
OUTDOOR LIGHTING
8 373 046 009

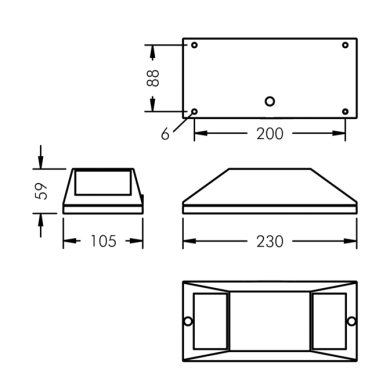

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, high effiency safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, 4 holes Ø 6 mm, spacing 200 mm x 88 mm, cable gland: M20, connecting terminal: 3 pole, high‑end optical system with specially designed reflectors achieve a uniform arch of light, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, luminous flux: 161 lm, wattage: 4 W, delivered lumens 40 lm/W, protection type IP67, protection class I, impact resistance IK08, dimensions (L×H×W): 230 × 59 × 105 mm, weight 1.1 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Specification

Power
4W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
161LM
Finishing
BLACK
IP Rating
IP67
Color Rendering
CRI>80
Driver
ON/OFF DRIVER

See more

WE-EF
PROJECTOR LIGHT
OUTDOOR LIGHTING

P66, Class I. Class II on request. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Silicone CCG® Controlled Compression Gasket. Safety glass lens. One cable gland. Second gland for through wiring on request. Integral EC electronic converter, thermally separated. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Factory installed LED circuit board. 1-10V, DALI Interface or Eco Step Dim® on request

NEKO
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Round recessed downlight made of die-cast aluminium with black powder-coating finish (RAL 9005) and black reflector; System Power 9W; measurements Ø78mm x 97mm; ceiling cutout of Ø68mm with a narrow mounting trim; ceiling thickness 5-20mm; luminaire’s weight is approximately 210g; rotation 350° and pivot Max. 30°; CCT 3000K with a System luminous flux of 650lm; high color rendering at an index of CRI90.

IGUZZINI
INGROUND UPLIGHT
OUTDOOR LIGHTING

Recessed luminaire that can be installed in floors or in the ground. The luminaire is supplied with an external orientation system (patent pending), without having to open the product, inclusive of double graduated scale: 0-30° with respect to horizontal plane and ±90° with respect to vertical axis.The lighting fixtures were designed and tested to withstand a static load of up to 50000 N and to resist drive-over stress by vehicles with tires.

WEVER & DUCRE
RECESSED DOWNLIGHT
INDOOR LIGHTING
Rectangular ceiling recessed downlight made from die-cast aluminium; housing White Matt powder coated; matt texture; with reflector in Black Matt wet painted; matt fine texture. The ingrss protection degree is IP20.
