MEYER

POLE LIGHT

OUTDOOR LIGHTING

8 905 246 069

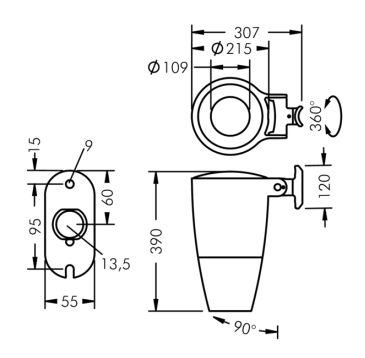

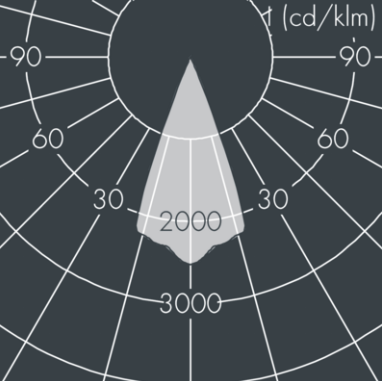

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 3 stainless steel screws, for installation on poles Ø 60 ‑ 100 mm, tiltable base made of powder coated aluminum, 2 drilled holes Ø 9 mm, spacing 95 mm, 1 centre hole Ø 13.5 mm, tilt range: 90°, 360° adjustable, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), CRI > 80, Beam angle (fwhm): 41°, luminous flux: 1483 lm, wattage: 55 W, delivered lumens 27 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,076 m², dimensions: Ø 215 mm, width 390 mm, weight 8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark.

Specification

Power

55W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1483LM

Finishing

BLACK

IP Rating

IP65

Color Rendering

CRI>80

Driver

ON/OFF DRIVER

LIGHTFORMS

WALL LIGHT

INDOOR LIGHTING

Lightplane Linear is a compact and streamlined luminaire that features integral drivers along with a high impact satin diffuser lens. The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+White.

LINEALIGHT

FOOT LIGHT

OUTDOOR LIGHTING

Single emission wall lights for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 1 powerled LEDs . The luminaire body is made of stainless steel and features a steel finish, processed by means of brushing. The ingress protection degree is IP65, IK10.

UNILAMP

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

Characterized by clean and clean-cut lines CORE is a family of square wall light, ceiling light, bollard and pole lights. CORE is available in two sizes and equipped with COB LED in three color temperatures and exceptional color consistency. The computer-aided-design of the parabolic reflector provides efficient light emission and distribution. The housing is dust and water protected through the extensive engineering design and testing. CORE is recommended to illuminate column, facades, walkways and vairous architectural design works. The pole lights give a great level of downward light with symmetric or asymmetric light distributions.

LINEALIGHT

WALLWASHER

INDOOR LIGHTING

Single emission lines for indoor application. The warm white LED light source with a diffused light distribution is composed of 360 topled LEDs. The device body is made of PC and features a opal white finish; the diffuser is made of PC. The ingress protection degree is IP40; the total weight is of 0.100 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.2 m length. The device features protection class III and can be wall lights or ceilingmounted. Compliant with the EN 60598-1 standard and its specific provisions.
