MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

8 890 046 029

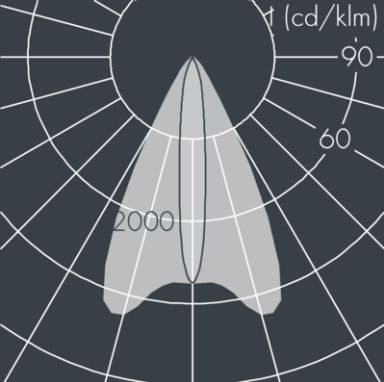

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 8.5 mm, spacing 70 mm, 1 centre hole Ø 17 mm, tilt range: 120°, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector with matt finish, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 54° / 11°, luminous flux: 4225 lm, wattage: 48 W, delivered lumens 88 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,04 m², dimensions (L×H×W): 192 × 162 × 140 mm, weight 2.6 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Specification

Power

48W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

4225LM

Finishing

BLACK

IP Rating

IP67

Color Rendering

CRI>80

Driver

ON/OFF DRIVER

WE-EF

BOLLARD

OUTDOOR LIGHTING

IP66/IP67. Class I. IK10. Marine-grade, all-aluminium construction. Pole section features galvanised steel reinforcement core. 5CE superior corrosion protection including PCS hardware. RFC™ Reflection Free Contour main lens. Silicone CCG® Controlled Compression Gasket. Luminaire is factory-sealed and does not need to be opened during installation. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. Optional 2200 K version up to max. 1050mA available. To be specified at time of ordering.

SPARK

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

Recessed adjustable downlight made of aluminium housing with white powder coated finish. Inner reflector available in Silver, Chrome black, Mirror chrome and white color finish. Honeycomb accessory and IP44 available upon request.

FLOS

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

Eclectic Ø70. Non-adjustable Downlight. “Flat” style façade. Necessary installation pre-frames, not included (to be ordered separately). Recessed position of the LED: 55º cut-off angle. IP54 water tightness. Alternative options for lenses, orientation modules and style façades are available as spare parts. The ingress protection degree is IP54.
