MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

8 890 046 049

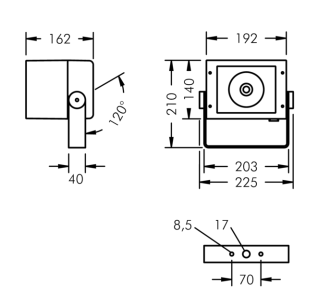

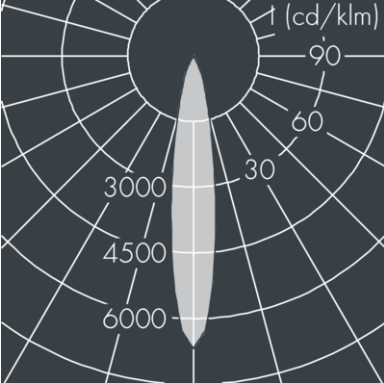

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 8.5 mm, spacing 70 mm, 1 centre hole Ø 17 mm, tilt range: 120°, cable gland: M20, connecting terminal: 3 pole, highly efficient anodized rotationally symmetrical reflector with matt finish, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 18°, luminous flux: 4390 lm, wattage: 48 W, delivered lumens 91 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,04 m², dimensions (L×H×W): 140 × 163 × 190 mm, weight 2.76 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Specification

Power

48W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

4390LM

Finishing

BLACK

IP Rating

IP67

Color Rendering

CRI>80

Driver

ON/OFF DRIVER

FORMALIGHTING

SURFACE MOUNTED LIGHT

OUTDOOR LIGHTING

Surface mounted light with body in cast aluminium, toughened thermal shock clear glass diffusers, weatherproof durable silicone gasket and external screws made of stainless steel. Simple to install via cable entry with grommet. Can be connected directly to the main power.

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a extra wide flood light distribution is composed of 12 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP68; the total weight is of 2.010 kg. The power supply cable is included and features a 0.250 m length. The device features protection class II and can be floor-mounted with an outer casing, code 99764 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.

HUNZA

SPOTLIGHT

OUTDOOR LIGHTING

The Wall Spot has been designed to be mounted onto walls and provide directional light for pathways and structural elements of a building. The spotlight can be aimed in any direction, with a fully adjustable knuckle allowing 360 degree rotation and 0-90 degree elevation. The ingress protection degree is IP66.
