MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

8 885 146 059

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, wall box: 2 drilled holes Ø 7 mm, spacing 110 mm, cable entry 7 – 10 mm, for recessed or surface mounted cable, tilt range: 200°, cable gland: M20, connecting terminal: 3 pole, highly efficient aluminum reflector with satin finish, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 92° / 108°, luminous flux: 2870 lm, wattage: 26 W, delivered lumens 110 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,035 m², dimensions (L×H×W): 183 × 70 × 183 mm, weight 3.4 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Specification

Power

26W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2870LM

Finishing

BLACK

IP Rating

IP67

Color Rendering

CRI>80

Driver

ON/OFF DRIVER

ENDO

SURFACE MOUNTED LIGHT

INDOOR LIGHTING

Semi recessed mount spotlight made of aluminium housing and matt black finishing. 355° rotation and cut out 45mm.

LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

Single emission downlights for indoor application. The warm white LED light source with a medium wide flood light distribution is composed of 1 powerled LEDs. The device body is made of die-cast aluminium en ab - 46100 and features a white + black finish, processed by means of powder coating; the diffuser is made of pom-c. The ingress protection degree is IP20; the total weight is of 0.12 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 40 x 40 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.

BEGA

WALL LIGHT

OUTDOOR LIGHTING

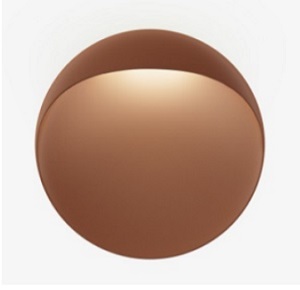

Luminaire made of copper and stainless steel, Opal glass with screw neck. Wall mounting with a mounting plate made of stainless steel, Steel grade number 1.4301. Mounting plate with 3 fixing holes ø 8.5 mm. Angle 120° · Pitch circle ø 100 mm, 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 3 G 1.5@ Plug connection. Connecting terminal 2.5@ Earth conductor connection LED power supply unit 220-240 V x 0/50-60 Hz, DC 176-264 V, DC Start ≥ 198 V, Safety class I, Protection class IP 44, Protected against granular foreign bodies, > 1 mm and splash water, Impact strength IK03. Protection against mechanical impacts < 0.35 joule, r – Safety mark, c – Conformity mark.
