MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

8 885 246 059

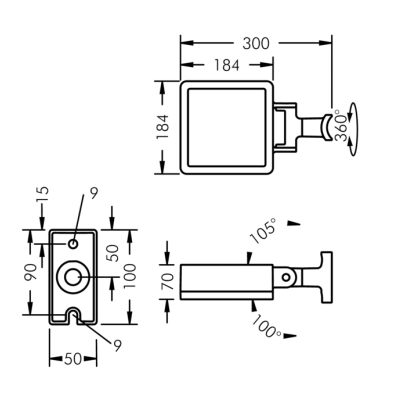

Housing made of die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, for installation on poles Ø 60‑100mm, adjustable aluminum mounting base, powder coated: 2 drilled holes Ø 9mm, spacing 75mm, 1 centre hole Ø 17mm, tilt range: 205°, cable gland: M20, connecting terminal: 3 pole, highly efficient reflector, integral driver (AC/DC), CRI > 85, 2 SCDM, service life L90/B10 > 50.000 h, luminous flux: 2550 lm, wattage: 26 W, delivered lumens 98 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,035 m², dimensions (L×H×W): 184 × 70 × 184 mm, weight 2.8 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Specification

Power

26W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

2870LM

Finishing

BLACK

IP Rating

IP67

Color Rendering

CRI>80

Driver

ON/OFF DRIVER

LINEALIGHT

WALLWASHER

OUTDOOR LIGHTING

Single emission lines for outdoor application. The warm white LED light source with a elliptic light distribution is composed of 18 powerled LEDs. The device body is made of aluminium 6060 and features a anodised aluminum finish, processed by means of 20 µm anodizing; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP67; the total weight is of 6.2 kg. The power supply cable is included and features a 0.17 m length. The device features protection class I and can be wall lights or ceilingmounted. Compliant with the EN 60598-1 standard and its specific provisions.

LUCENT

SURFACE MOUNT ADJ LIGHT

INDOOR LIGHTING

The NEW Surface95 tubular luminaire. Incorporates our Edge90 Accent downlight installed with integral driver. Available with our own LED50 ONE GEN2 and LED50 ONE ULTRA.

WIBRE

UNDERWATER LIGHT

OUTDOOR LIGHTING

Purposeful, clear, straightforward. A luminaire without ifs and buts. This is the 502 - a linear luminaire for swimming pools and other underwater areas. Twelve HighEnd multichips, linear arranged, surrounded by carefully selected lenses create a wide and homogeneous light field on the entire water surface, as well as a powerful illumination of the pool floor. The linear shape minimises dark areas in the pool. And it cuts a noble figure at the same time. The extremely flat stainless steel cover with safe, rounded corners contributes significantly to the design in long pools.
