SIMES

BOLLARD
OUTDOOR LIGHTING
S.7680W.24
Extruded EN AW-6060 aluminium profile, die-cast EN AB-44100 aluminium housing (copper free) with high corrosion resistance. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets. Painting Process : 3 Step Process 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 09. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: E. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

Specification

Power
167.6W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
14387LM
Finishing
ANTHRACITE GREY
IP Rating
IP65
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

LINEALIGHT
PROJECTOR LIGHT
OUTDOOR LIGHTING

Single emission projectors for outdoor application. The super warm LED light source with a narrow spot light distribution is composed of 1 powerled LEDs. Luminaire body is made of die-cast aluminium en ab - 46100 and features a dark brown finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered. The ingress protection degree is IP66. IK05

LUCI
LED STRIP
OUTDOOR LIGHTING

Revolutionize designs with sleek 5.8mm dot-free tape light! 535 lm/m, 810 lm/m

Beautiful surface emission enhances the versatility of design possibilities

Available in 160 different lengths ranging from 25mm to 4000mm for IP65 specification

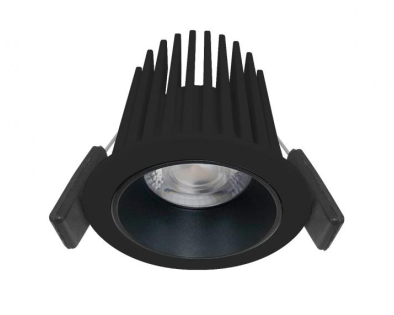

LUCENT
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING
MiniTrim fixed downlight with soft appearance and minimal trim to achieve a trimless effect. This product is designed to utilise our LED51HE to be Part L Volume 2: General compliant.
BEGA
INGROUND UPLIGHT
OUTDOOR LIGHTING
Recessed inground uplight luminaire ,made of stainless steel housing, installation bush made of polyamide and white safety glass. Drive-over luminaire from vehicles with pneumatic tyres. Dust-tight and water pressure tight. Maximum submersion depth 20m. IP68,IK10.
