LOUIS POULSEN

BOLLARD

INDOOR LIGHTING

FLINDT_5747402652

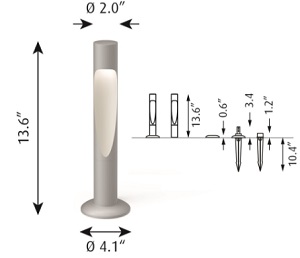

The fixture emits a wide downward directed glare-free light. The light source rests at the top inside the asymmetric carving on the side of the bollard, where the gradient serves as a reflector that softens the light and forms a pleasant organic shape on the ground below. The adapter is positioned externally from the fixture and can run up to six bollards. Maximum distance to last bollard is 30m. Length of enclosed cables: 5m. Spike: Uses standard cables and connectors which are supplied. Plug and play. Anchor/Base: Use installation cable for legal fixed installation. Adapter required installation by certified electrician. Width x Height x Length (mm) | 50 x 695 x 50 Max 3,0 kg | 50 x 345 x 50 Max 2,9 kg . Ingress protection w/spike: IP 65. Ingress protection w/anchor: IP 65 (Head), IP44 (Anchor). Ingress protection w/base plate: IP 65 (Head), IP44 (Baseplate). Electric shock protection III. IK06

Specification

Power

6.5W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

252LM

Finishing

NATURAL PAINT ALUMINIUM

IP Rating

IP44

Color Rendering

CRI>90

Driver

ON/OFF DRIVER

MEYER

FLOODLIGHT

OUTDOOR LIGHTING

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, closure with 4 stainless steel screws, mounting bracket: 1 elongated hole Ø 7 mm, spacing 18 mm, 1 centre hole Ø 8.5 mm, tilt range: 180°, cable gland: M20, connecting terminal: 3 pole, precise PMMA optics, integral driver (AC/DC), CRI > 80, max 2 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 6°, luminous flux: 563 lm, wattage: 7 W, delivered lumens 77 lm/W, protection type IP65, protection class I, impact resistance IK08, windage area 0,008 m², dimensions (L×H×W): 85 × 86 × 85 mm, weight 0.9 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

LINEALIGHT

INGROUND UPLIGHT

OUTDOOR LIGHTING

Single emission uplights for outdoor application. The RGBW - 4000 K LED light source with a spot light distribution is composed of 1 arrayled LEDs with CCT of RGB-W 4000 K.Product suitable for installations in coastal areas with high salinity and strong exposure to atmospheric agents.

LINEALIGHT

SPOTLIGHT

OUTDOOR LIGHTING

Single emission projectors for outdoor application. The super warm LED light source with a adjustable focus light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 2714 lm, with a 123.4 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a embossed black ral 9005 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered. The ingress protection degree is IP67, IK10.
