LINEALIGHT

Direct light luminaire, designed to use monochrome LED lamps. Ceiling- and wall-mounted. Consists of a body and supports for installation (to be ordered separately). Extruded aluminium boy, with zamak die-cast end caps complete with silicone seals. Coated with liquid acrylic paint with a high level of weather and UV ray resistance. The top of the optical assembly is closed by a 3 mm thick transparent glass screen, fixed with silicone. Complete with multi-LED power plate in Warm White 3100K with 24V dc electronic circuit (ballast to be ordered separately); 24V smart driver allowing constant light flow emission despite variations in the input voltage (from 30V dc to 16V dc). Fitted with a PMMA diffusing filter and optic with plastic (methacrylate) lens for Wall Grazing lighting. All external screws used are made of A2 stainless steel. The luminaire technical characteristics conform to EN 60598-1 standards and particular requirements. BH17: 37 surface Full Remote - 12 Warm White LEDs - 24V dc - L=1056mm - Wall Grazing Optic

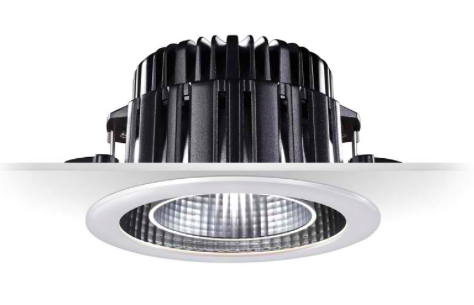

Single emission recessed downlights for indoor application. The warm white LED light source with a flood light distribution is composed of 1 arrayled LEDs with CCT of 4000 K and a CRI 90; the source luminous flux is 1858 lm, with a 185.8 lm/W nominal luminous efficacy.

Luminaire made of aluminium alloy, aluminium and stainless steel Crystal glazing, Mounting plate with 3 fixing holes ø 5.5 mm. Angle 120° · Pitch circle ø 85 mm, 2 cable entries for through-wiring of mains supply cable ø 7-10,5 mm, max. 3 G 1.5@. Connecting terminal 2.5@ with plug connection. Earth conductor connection. LED power supply unit, 220-240 V x 0/50-60 Hz, DC 176-264 V. DC Start ≥ 198 V, Safety class I Protection class IP 44, Protected against granular foreign bodies > 1 mm and splash water, r – Safety mark, c – Conformity mark.
