SIMES

INGROUND UPLIGHT
OUTDOOR LIGHTING

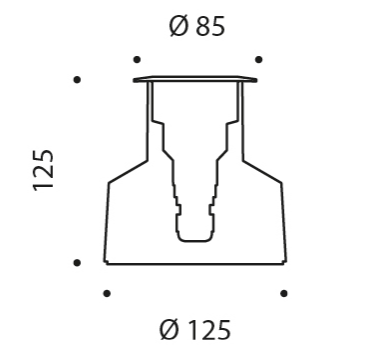

S.3313W.19
Body made of AISI 316L monoblock stainless steel. Absence of screws (the luminaire is fixed to the recessing box with OR rings). Recessing box in polypropylene. Mechanical resistance of diffusor IK 08 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

Specification

Power
3.1W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
177LM
Finishing
STAINLESS STEEL
IP Rating
IP67
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

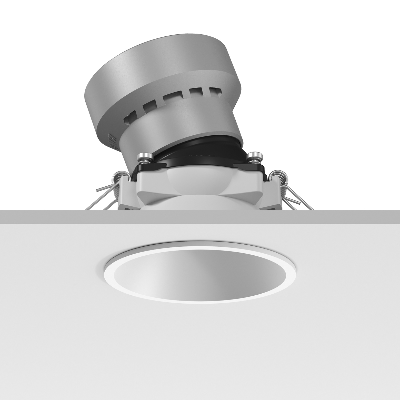

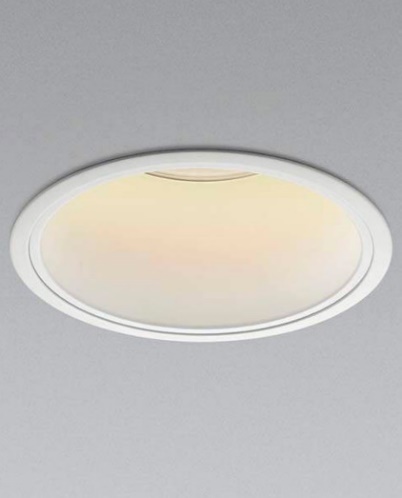

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a wide flood light distribution is composed of 3 powerled LEDs. The device body is made of aluminium and features a embossed white ral 9003 finish, processed by means of coating. The ingress protection degree is IP40; the total weight is of 0.09 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.12 m length. The device features protection class III and can be ceiling-mounted, with a 46 mm diameter hole (in plasterboard) with an outer casing, code 89374 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
BEGA
INGROUND FOOT LIGHT
OUTDOOR LIGHTING

In-ground wall washer up light makes it possible to fully illuminate a vertical surface, like façade and from the ground to the lower edge of the roof. The lower limit of the light distribution is a straight line, without the usual “light cone”. The luminaires can be driven over by vehicles with pneumatic tyres. Luminaire must not be used for installation in road lanes, where the fixture is exposed to a horizontal strain due to braking, acceleration and change of direction. Luminaire cover made of cast bronze and luminaire housing made of cast aluminium. Recess housing made of stainless steel. Reflector surface made of pure aluminium. IP67, IK10

DIMENSION : Ø345*H110MM

LINEALIGHT
WALL LIGHT
OUTDOOR LIGHTING
Single emission wall lights for outdoor application. The warm white LED light source with a spot light distribution is composed of 1 arrayled LEDs. The luminaire body is made of die-cast aluminium en ab - 46100 and features a white finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65, IK08.
LINEALIGHT
SPOTLIGHT
INDOOR LIGHTING
