SIMES

INGROUND UPLIGHT

OUTDOOR LIGHTING

S.3315W.19

Body made of AISI 316L monoblock stainless steel. Absence of screws (the luminaire is fixed to the recessing box with OR rings). Recessing box in polypropylene. Mechanical resistance of diffusor IK 08 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

Specification

Power

Color Temperature

3000K

Light Source Type

LED

Lumen Output

284LM

Finishing

STAINLESS STEEL

IP Rating

IP67

Color Rendering

CRI 90

Driver

ON/OFF DRIVER

LUCE & LIGHT

SPOTLIGHT

OUTDOOR LIGHTING

Pivot 1.7 code: CP17020FKA-1/projector for outdoor applications/surface mounted (ceiling, wall, ground, spike, strap)

Power consumption: 7W/Power supply: 24Vdc/Lumen output at source: 657 lm (3000K, 7W, CRI 80)/Delivered lumen output: 463 lm (3000K, 34°, 7W, CRI 80)/1 high-intensity power LED, 3-step MacAdam, 50 000h L90 B10 (Ta 25°C)/LED colour: 2700K/Optics: 54°: optical system consisting of a deep-set, high-efficiency TIR lens/CRI Colour Rendering Index: 80/Operating temperature: -20°C — +45°C/Glow wire test: 960°/Photobiological safety: photobiological safety: risk group 1 according to EN 62471:2006/Appliance class: class III/Weight: 400 g/Dimensions: Ø40x75 mm/Energy efficiency class: F (light source) in accordance with EU 2019/2015

BROWNIE

LED LIGHT BAR

INDOOR LIGHTING

V-Cove series LED Strip designed and developed by Brownie Ecotronics, mainly targeted for cove lighting application. The perfect solution for general cove lighting. Available in CCT 2000K, 2500K, 2700K, 3000K, 3500K, 4000K and 6500K. Luminaires of this series are designed with dark spot-less in between fittings. This fixture length of this series is also customizable, perfect for vanity mirror and other indirect lighting.

NEKO

ADJUSTABLE DOWNLIGHT

INDOOR LIGHTING

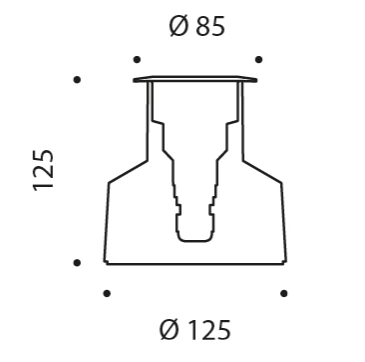

Round recessed mounted downlight made of die-cast aluminium with White powder-coating finish (RAL 9016) and White reflector; LED 6W; measurement Ø85mm; ceiling cutout of Ø75mm with a narrow mounting trim; luminaire’s weight is approximately 195g; rotation 355° and pivot max. 30°;
