SIMES

INGROUND UPLIGHT
OUTDOOR LIGHTING
S.5461W
"Copper Free" Aluminium die cast housing in EN AB-44100 with high resistance against corrosion. Stone wash surface treatment prior to painting process. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets. Painting Process : 3 Step Process: 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 09 Maximum load capacity 1000 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: E. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

Specification

Power
10.5W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
758LM
Finishing
STAINLESS STEEL
IP Rating
IP67
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

FORMALIGHTING
SURFACE MOUNTED DOWNLIGHT
INDOOR LIGHTING

Ceiling and wall mounted spotlight with light body and driver canopy in cast aluminium. Inclusive of reflector in metalized PC. Light body is designed for passive cooling. Available in 3 different sizes. Tiltable vertically 0-90° and rotatable horizontally 360°.

LUCI
LED STRIP
OUTDOOR LIGHTING

High efficacy LED series. Top bend dot-free flexible light, connectable up to 10m per run, IP67, max custom length 2m for outdoor usage, up to 10m per circuit


VDA
CONTROL SYSTEM
INDOOR LIGHTING

Nucleus is a series of fully programmable DIN bar controllers capable of offering significant energy savings and managing light circuits, curtain management systems, splitters, and fan coils, access control systems based on RFID

or BLE, together with the most well-known room functions such as DnD, the MUR, butler calls, etc. The controller provides a unique level of scalability with over 15 plug and play gateways and expansions which can be

easily connected to the main unit to satisfy a broad range of installation requirements. Complex scenario algorithms can be configured, such as “Welcome” and “Return to Room” based on occupancy, time of day, and other statuses.

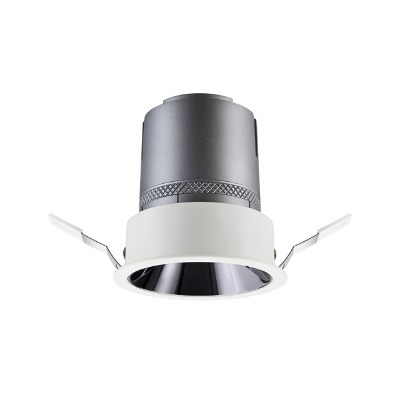

IGUZZINI
ADJUSTABLE DOWNLIGHT
INDOOR LIGHTING

Round recessed luminaire with contact frame. Adjustable version with max 30° tilting movement. The main adjustable die-cast aluminium body includes a radiant surface that guarantees optimal heat dissipation. Metallised, thermoplastic, high definition reflector - medium optic (24°). Structure featuring a die-cast aluminium external contact frame with a white finish only. Steel technical rotation parts. The ring inside the adjustable body is made of thermoplastic and is available in a range of painted and metallised finishes. Safety glass screen included. Quick, easy, tool-free assembly. 2700K high colour rendering index LED. IP20.
