SIMES

INGROUND LINEAR LIGHT
OUTDOOR LIGHTING
S.7013W.13
Fixing base and recessing box in extruded anodized EN AW-6060 aluminium housing (copper free) with high corrosion resistance. Mechanical resistance IK 10 Maximum load capacity 500 Kg. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: G. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

Specification

Power
15.5W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
579LM
Finishing
ANODIZED ALUMINIUM
IP Rating
IP67
Color Rendering
CRI 90
Driver
ON/OFF DRIVER

See more

LINEALIGHT
INGROUND UPLIGHT
OUTDOOR LIGHTING

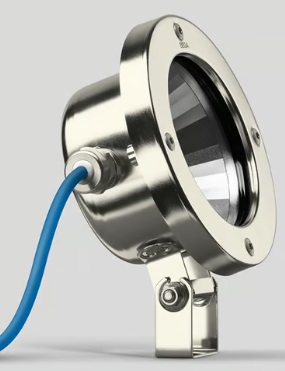

Single emission uplights for outdoor application. The warm white LED light source with a medium flood light distribution is composed of 1 arrayled LEDs. The luminaire body is made of aisi 316l steel and features a steel finish; the diffuser is made of extra clear glass with a silk-screening treatment. The ingress protection degree is IP68, IK10.
FLOS
RECESSED DOWNLIGHT
INDOOR LIGHTING
Recessed luminaire with LED light source. 220-240V & dimmable 1-10V power supply included. The ingress protection degree is IP20.
LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source with a extra wide flood light distribution is composed of 1 arrayled LEDs. The device body is made of PC, processed by means of coating. The ingress protection degree is IP20; the total weight is of 1.5 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.30 m length. The device features protection class III and can be ceiling-mounted, with a 157 x 157 mm hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
FORMALIGHTING
SUSPENDED DOWNLIGHT
INDOOR LIGHTING

Pendant mounted luminaire with light body in extruded aluminium. Light body available in three diameters (25mm, 36mm and 77mm) Exchangable front ring in wide range of colours. Supplied with ceiling canopy and pre-installed 1.5m electrical cable and with 1 x 1.5m pendant steel wires. Available in three sizes and four different length.
