LINEALIGHT

RECESSED DOWNLIGHT

INDOOR LIGHTING

QUANTUM_R_90564M30

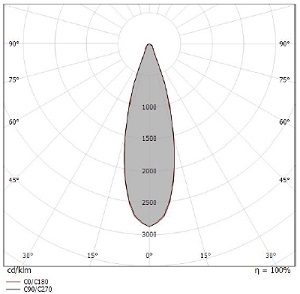

Single emission downlights for indoor application. The super warm LED light source with a medium flood light distribution is composed of 1 arrayled LEDs with CCT of 2700 K and a CRI 80; the source luminous flux is 1932 lm, with a 128.8 lm/W nominal luminous efficacy. The device body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44.

Specification

Power

15W

Color Temperature

2700K

Light Source Type

LED

Lumen Output

1086LM

Finishing

WHITE

IP Rating

IP44

Color Rendering

CRI80

Driver

DALI DRIVER

UNIOS

LED NEON TUBE

OUTDOOR LIGHTING

Aeon Flex Pro Flexible Linear Series ;SIDE BEND

Material: Encapsulated Polyurethane

Performance Specifications

Lumens 247lm/m

IP Rating IP68

CRI 90+ (R9: >50)

Efficacy Up to 49.40lm/W

Lifetime >50,000h L80B10

LED Type SMD

Warranty 5 Years

LINEALIGHT

CEILING LIGHT

INDOOR LIGHTING

Single emission ceiling lights for indoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 6 powerled LEDs with CCT of 3000 K and a CRI 90; the source luminous flux is 2202 lm, with a 115.9 lm/W nominal luminous efficacy. The device body is made of aluminium 6060 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of PC. The ingress protection degree is IP20; the total weight is of 0.6 kg. The total absorbed power is 21 W. The power supply cable is included and features a 0.170 m length. The device features protection class II and can be ceiling-mounted. Compliant with the EN 60598-1 standard and its specific provisions.

WEVER & DUCRE

SURFACE MOUNTED DOWNLIGHT

INDOOR LIGHTING

Cylindrical ceiling surface mounted downlight made from die-cast aluminium; surface Black Matt; powder coated; matt texture The ingrss protection degree is IP20.
