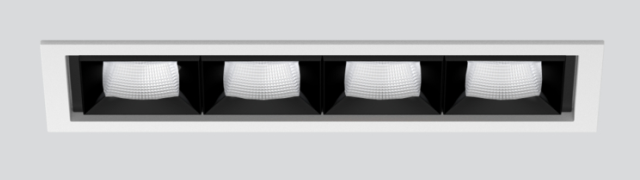

Available in 4 sizes, an extensive range of accessories and 15,000+ customisations, the ION R Downlight is an outstanding contender for all lighting needs. With 2 models, Standard and Wallwasher, the ION R Downlight can be specified for both horizontal and vertical lighting needs.

Housing made of corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, dark screenprint, silicon gasket, mounting bracket powder coated aluminum: 1 long hole Ø 6.5 mm, spacing 15 mm, tilt range: 180°, cable gland: M16, connecting terminal: 3 pole, highly efficient aluminum hybrid‑reflector with lens for narrow beam control , with 0,8 m cable H05RN‑F3G1, integral driver (AC/DC), CRI > 80, max 3 SDCM, service life L90/B10 > 50.000 h, Beam angle (fwhm): 6°, luminous flux: 326 lm, wattage: 5 W, delivered lumens 65 lm/W, protection type IP65, protection class I, impact resistance IK07, windage area 0,005 m², dimensions (L×H×W): 61 × 67 × 60 mm, weight 0.47 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE mark. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

Our care in the development and manufacture of BEGA luminaires must also be followed-up by expert installation and maintenance by the electrical trade. This will ensure a long service life and reliable operation. BEGA works closely with experts in the electrical trade. We would be happy to recommend you selected specialist companies, who can provide you with expert assistance in selecting and installing your luminaires.

Luminaire: cast aluminium, black powder-coated, designed as heat sink, with connection cable L 1m. Gimbal suspension: polymer, black. Luminaire can be tilted from 0° to 40°, and can be tilted through 60° in the longitudinal direction of the channel.
