Product Detail
Home Products Detail

Products

WIBRE

UNDERWATER LIGHT
OUTDOOR LIGHTING

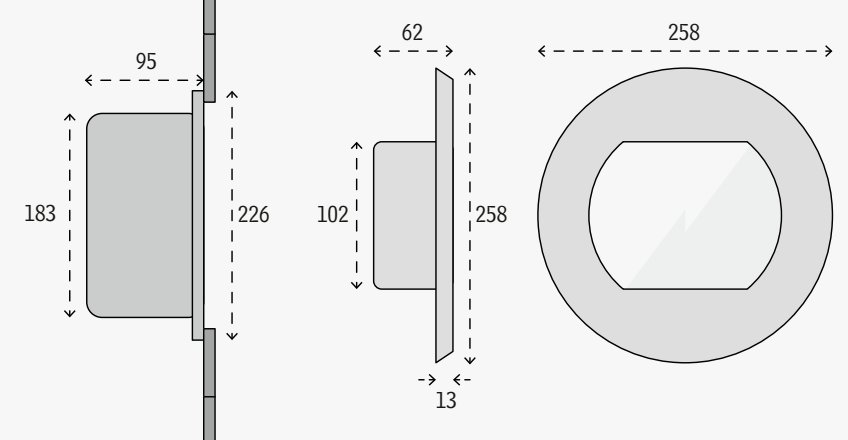

4.0271.03.10
Protection class IP68 – up to 3m water depth. Entirely made of stainless steel 316Ti 1.4571. Round attachment cover, made of stainless steel 316Ti, height 13 mm. For all standard pool types. Optimation of beam angle character. POW-LED-Platine temperature control (NTC). Beam angle: 80° symmetric/horizontal and 45° asymmetric/vertical (halogen). Light source can be changed without draining the water (halogen). Type 4.0272 with frosted glass for soft light distribution (light losses approx. 15 %). Supplied with light source and special underwater cable already connected

Specification

Power
100W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
2200LM
Finishing
STAINLESS STEEL
IP Rating
IP68
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

SPARK
SURFACE TRACKLIGHT
INDOOR LIGHTING

Track Adjustable Spotlight luminaire body made of aluminium housing with white powder coated finish. Reflector finish available White, Silver and Black Chrome. Black finish and honeycomb accessory available upon request.

LINEALIGHT
LED NEON TUBE
OUTDOOR LIGHTING

Single emission led strip for outdoor application. The warm white LED light source with a diffused light distribution is composed of 112 topled LEDs with CCT of 3000 K and a CRI >90; the source luminous flux is 1526 lm, with a 106.0 lm/W nominal luminous efficacy. The device body is made of technopolymer and features a white finish; the diffuser is made of pu. The ingress protection degree is IP67; the total weight is of 0.103 kg.


DALITEK
CONTROL SYSTEM
CONTROL SYSTEM

6 channels 10A/CH switch output, 6 channels 0-10V control signal. Switch relays and 0-10V channels can be controlled separately. 220V ± 10% 50Hz Single phase 0.1A. Phase-independent. Control input: 1 × RS485 network serial port input; 1 × AUX dry contact input. Internal control: Build in programmable logic controller. Network DC power: 90mA DC12V. Presets scenes: 96 (no loss of information due to power failure. DIN rail installation

WE-EF
SPOTLIGHT
OUTDOOR LIGHTING
IP66, Class I. IK07. Marine-grade, die-cast aluminium alloy. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone CCG® Controlled Compression Gasket. Integral EC electronic converter in thermally-separated compartment. Advanced thermal management protects LEDs while optimising lumens output. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. DALI Interface. For 2200 K version available on request.
