LINEALIGHT

SURFACE MOUNTED DOWNLIGHT

OUTDOOR LIGHTING

PORTIK R_81855W30

Surface outdoor downlight come with medium flood light distribution of 1 arrayled LEDs. Luminaire body is made of die-cast aluminium en ab - 46100 and features a embossed white ral 9003 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of extra clear glass - tempered with a silk-screening treatment. The ingress protection degree is IP65. IK07

Specification

Power

12.5W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1232LM

Finishing

WHITE

IP Rating

IP65

Color Rendering

CRI>80

Driver

ON/OFF DRIVER

XAL

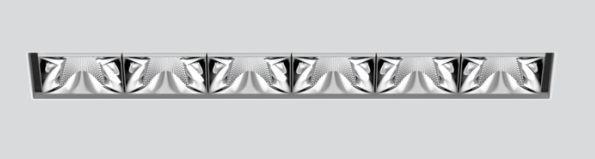

LINEAR DOWNLIGHT

INDOOR LIGHTING

Rectangular recessed multi-downlight made of die-cast aluminium; installation without tools in mounting set due to patented ball catch system; rectangular installation housing; for trimless installation in plasterboard ceilings; suitable for ceiling thickness of 12.5/15/20/25 mm; equipped with six flood round light elements; symmetrical light distribution with precise radiation characteristic, beam angle 49°; high quality reflector with micro-faceted, aluminum-vaporised surface; chrome reflector; UGR ≤ 16; VDU compatible workplace luminaire according to DIN EN 12464-1; luminance above 65° ≤ 3000 cd/m²; passive cooling of the LEDs through improved heat sink geometry; light colour 3000 K; binning initial MacAdam ≤ 3 SDCM; CRI ≥ 90; min. 90% of luminous flux after 50000 operating hours; energy-efficient high power LEDs with very good colour rendering; degree of protection IP20; PC2; incl. converter, non dimmable; through wiring connection box, 3-pole or 5-pole, available as an accessory; accessories are listed separately; light source not replaceable; control gear replaceable by an authorized professional; clank-free

LINEALIGHT

INGROUND LINEAR LIGHT

OUTDOOR LIGHTING

Single emission recessed downlights, recessed downlights, uplights, lines or lines for outdoor application. The natural white LED light source with a spot light distribution is composed of 5 powerled LEDs with CCT of 4000 K and a CRI 80; the source luminous flux is 2177 lm, with a 134.4 lm/W nominal luminous efficacy.

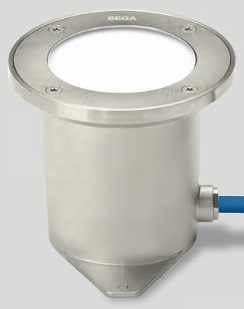

BEGA

INGROUND UPLIGHT

OUTDOOR LIGHTING

Recessed inground uplight luminaire ,made of stainless steel housing, installation bush made of polyamide and white safety glass. Drive-over luminaire from vehicles with pneumatic tyres. Dust-tight and water pressure tight. Maximum submersion depth 20m. IP68,IK10.

WE-EF

INGROUND UPLIGHT

OUTDOOR LIGHTING

IP67. IK07. Stainless steel inground section. Die-cast hood made from marine-grade aluminium alloy. Construction helps to prevent accumulation of insects, leaves and debris on lens and restricts glare to passers-by. 5CE superior corrosion protection including PCS hardware. Safety glass lens. Silicone rubber gasket. Factory-sealed termination chamber with cable gland and 0.5 m of flexible PVC-free cable. Integral EC electronic converter. Advanced thermal management protects LEDs while optimising lumens output. Removable LED boards for upgrading. CAD-optimised optics for superior illumination and glare control. OLC® One LED Concept. Luminaire installation blockout and sealable junction box included in supply.
