Products

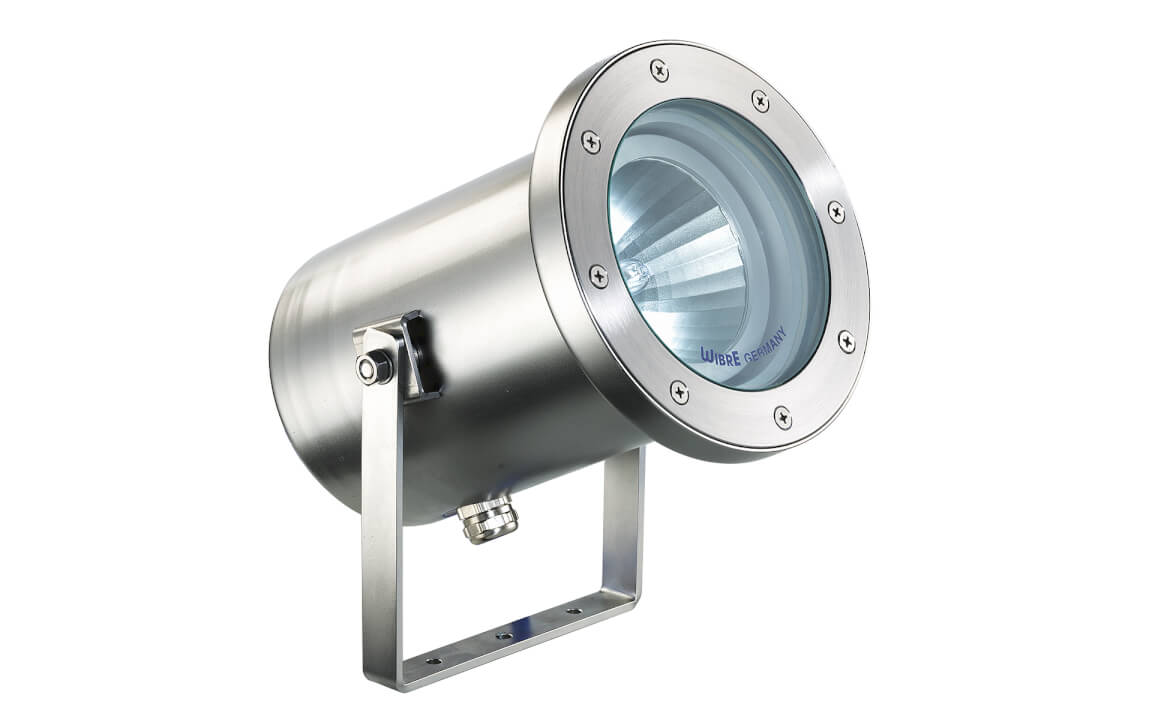

WIBRE

UNDERWATER LIGHT
OUTDOOR LIGHTING
4.0171.20.12

Protection class IP68 – up to 5m water depth. Protection class IP69 - protection against high pressure and high jet water temperatures. Entirely made of stainless steel 316Ti. Round attachment cover, made of stainless steel 316Ti, height 3 mm. POW-LED cold white, warm white, neutral white. POW-LED blue. Multichip POW-LED RGB. Multichip POW-LED RGB-W. Multichip POW-LED Dynamic white. Operating mode: constant current. Rotationally symmetric light distribution. Cable gland M16x1,5. Constant-current power source/RGB controller external. Installation housing made of stainless steel 316Ti with 1.5 m cable protection tube and connection socket (order separately). Supplied with lamp and 3 m of underwater cable.

Specification

Power
9W
Color Temperature
3000K
Light Source Type
LED
Lumen Output
750LM
Finishing
STAINLESS STEEL
IP Rating
IP69
Color Rendering
CRI 80
Driver
ON/OFF DRIVER

See more

LINEALIGHT
RECESSED DOWNLIGHT
INDOOR LIGHTING
Single emission downlights for indoor application. The warm white LED light source is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed black ral 9005 finish, processed by means of powder coating; the diffuser is made of uv resistant polycarbonate. The ingress protection degree is IP44; the total weight is of 0.078 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 0.170 m length. The device features protection class III and can be ceiling-mounted, with a 29 mm diameter hole (in plasterboard). Compliant with the EN 60598-1 standard and its specific provisions.
LIGMAN
BOLLARD
OUTDOOR LIGHTING

Outdoor bollard made of die-cast aluminium housing extruded aluminium profile. Column pre-treated before powder coating ensuring high corrosion resistance. Single cable entry. One IP68 connector supplied with 0.2 m of 3x1.0 sqmm outdoor cable. Stainless steel fasteners in grade 304 with zinc flake coating (ZFC). Durable silicone rubber gasket.Frosted glass diffuser. Integral control gear. IP65.

LIGHTFORMS
SURFACE MOUNTED LIGHT
INDOOR LIGHTING
Lightplane Linear is a compact and streamlined luminaire that features integral drivers along with a high impact satin diffuser lens. The fixture is available with several LED lamping options including multiple outputs and CCTs, tunable white and colour-changing RGB+White.
SPARK
WALLWASHER
OUTDOOR LIGHTING

Linear 38 series an elegant slim, low profile and highest intensity LED wall-washer luminaire. Super white glass with 94% high light transmittance, high light efficacy. Bevel design at its edge is more delicate and protect it from edge bumping. Black light technology, built-in grille for anti-glare. Suitable for Indoor and Outdoor application. IP66
