Product Detail | Bloxlimited

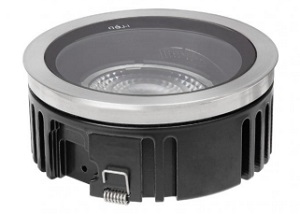

WIBRE

UNDERWATER LIGHT

OUTDOOR LIGHTING

4.0240.00.12

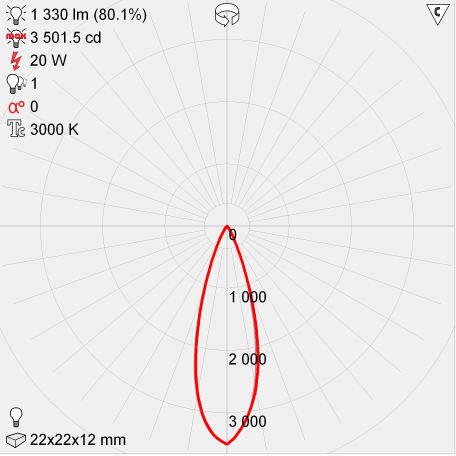

Protection class IP68 – up to 3m water depth. Protection class IP69 - protection against high pressure and high jet water temperatures. Entirely made of stainless steel 316Ti 1.4571. To be fitted on nozzles up to 1 inch. POW-LED cold white, warm white, neutral white. POW-LED royal blue. Multichip POW-LED RGB-W. Operating mode: constant voltage. Rotationally symmetric light distribution. Cable gland PG9, marine grade 316Ti stainless steel. Constant-voltage power source/RGB-W controller. Supplied with 3 m of underwater cable

Specification

Power

18W

Color Temperature

3000K

Light Source Type

LED

Lumen Output

1330LM

Finishing

STAINLESS STEEL

IP Rating

IP69

Color Rendering

CRI 80

Driver

ON/OFF DRIVER

MEYER

PROJECTOR LIGHT

OUTDOOR LIGHTING

Housing made of extruded aluminum and corrosion‑resistant die‑cast aluminum AlSi12, polyester powder coated by high‑quality and UV‑stabilized coating process, Colour: black ral 7021, all exterior parts are stainless steel, tempered safety glass, anti‑reflective coating from 1 side, silicon gasket, closure with 4 stainless steel screws, powder coated aluminum mounting bracket with tilt scale: 2 drilled holes Ø 9 mm, spacing 70 mm, 1 centre hole Ø 22 mm, tilt range: 105°, cable gland: M20, connecting terminal: 3 pole, focusable projection lens for precise light control and sharp‑edged image projections, integral driver (AC/DC), 80, service life L70/B > 50.000 h, Beam angle (fwhm): 14°, luminous flux: 1544 lm, wattage: 55 W, delivered lumens 28 lm/W, protection type IP67, protection class I, impact resistance IK08, windage area 0,085 m², dimensions: Ø 240 mm, width 425 mm, weight 8.1 kg. The modular luminaire design makes the replacement of components possible. The product meets the demands of the applicable EU guidelines and product safety regulations and bears the CE and ENEC marks. Customized solutions and modifications are possible: Special ral, db or ncs colours as polyester powder coat, luminaires in 2700 K and other colour temperatures and versions for high ambient temperature.

PHOS

RECESSED DOWNLIGHT

OUTDOOR LIGHTING

The Eclipse Mini Trim is a recessed, fixed downlight with a Ø86mm bezel and features a beautifully sculpted anti-glare baffle. Unique, elegant small aperture. 360° rotation, 26° Tilt. Easily interchangeable optics. Flawless finishes available on all components. Part of a wide family range of fully modular luminaires

BEGA

WALL LIGHT

OUTDOOR LIGHTING

Luminaire with emergency lighting function according to DIN EN 60598-2-22 for integration in emergency lighting systems according to DIN VDE 0108-100. With integral accumulator for 3 hour emergency operation in case of mains failure. Luminaire made of aluminium alloy, aluminium and stainless steel. IP65,IK07.

LINEALIGHT

WALL LIGHT

OUTDOOR LIGHTING

Single emission wall lights for outdoor application. The warm white LED light source with a asymmetric wallwasher light distribution is composed of 1 powerled LEDs. The device body is made of aluminium 6026 and features a embossed white ral 9003 finish, processed by means of open pore anodizing + powder coating; the diffuser is made of silicone resin. The ingress protection degree is IP66; the total weight is of 0.077 kg. The power supply driver is not provided and is to be ordered separately. The power supply cable is included and features a 1 m length. The device features protection class III and can be wall lights or ceilingmounted, with a 29 mm diameter hole (in plasterboard) with an outer casing, code 84915 (for concrete or masonry). Compliant with the EN 60598-1 standard and its specific provisions.
