The LS393LED is a compact inground option featuring a 6W LED module with output similar to a 50W MR16. With options for line voltage input and dimming via Lumascape d5 driver technology, this inherently protected, compact luminaire is suitable for use in many locations where MR16-based luminaires cannot be used due to heat. Internal rotation and tilt adjustabilty ensure the most efficient light delivery can be set according to the site conditions. DIMENSION: 110(D)x240(H)mm.

Die-cast EN AB-47100 aluminium housing with high corrosion resistance. Stone wash surface treatment prior to painting process. A4 grade Stainless. Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Silicone gaskets. Painting Process: 3 Step Process: 1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 07. This luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user. This product contains a light source of energy efficiency class: F. LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire min. 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.

Monospot pole luminaires in sizes 3 and 4 can be equipped with a Zhaga 18 connection socket. To this standardised interface, communication nodes for wireless control and monitoring are connected. Switch-on and switch-off times can be scheduled and light levels can be controlled flexibly via remote access. In addition, the status of each luminaire is monitored in real-time. Operators of public lighting systems benefit from efficient and cost-effective maintenance. The luminaires have integral DALI drivers with D4i standard.

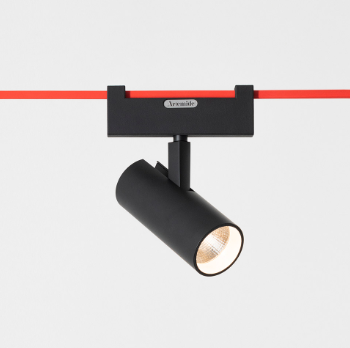

Funivia is a functional network of relationships, material and immaterial, free and inclusive capable of evolving through the cooperation of its elements. It starts from the essential, with a "mountaineer's" spirit it discovers a new level of freedom of light in spaces. A rope, the cable that carries energy, and nails, the fastening elements in space, are the basis for going far, overcoming the limits given by the rigidity of systems. The cable, with a special minimal cross-section but capable of supporting both mechanical and thermal stresses, is the energy distribution channel of the system and the load-bearing element on which the light elements are connected, it runs seamlessly in space transcending the limits of three dimensions. It is attached to the side, floor or ceiling through mechanical elements. It runs inside them without requiring to be cut and thus interrupted, drawing in space a network of regular lines, horizontal or vertical, but also freely inclined. From a single power point it can run indefinitely, the only limit being the power installed on its length. Funivia is not bound to a power grid or a predefined design, it can enter any space at any time and draw light with the utmost freedom, it can generate an extraordinary performance quality even without an ad hoc installation a specific intervention in the space. The light elements hook on the cable thanks to a "bridge" element, a kind of current-stealing lock that mechanically fixes the luminaire and takes energy from the cable. Also in this digital network each luminaire has its own identity, its own IP address, through which it can be managed with Dali systems or with Artemide App It is a sustainable approach at the level of production, distribution, installation, consumption, use, integration of elements that already exist without necessarily calling for the creation of new additional products. Funivia breaks a pattern common to existing lighting systems, breaking out of the rigidity of fixed modules (in space, stock, production).
